13KR-6H-P — JST product photo
JST

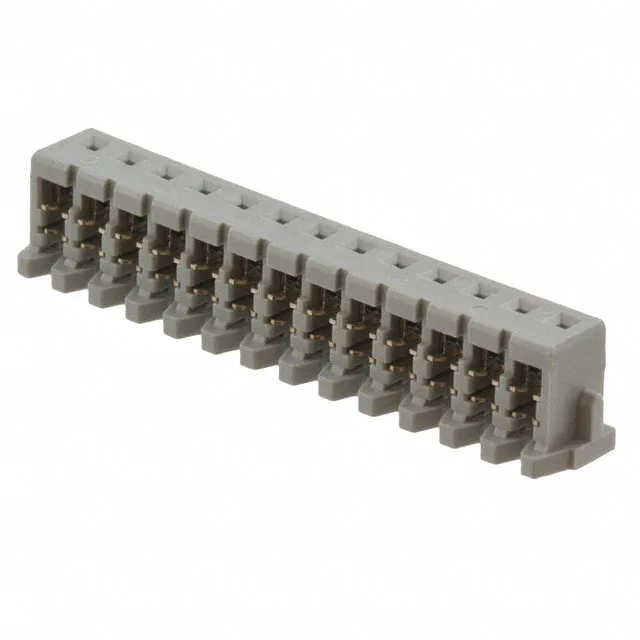

JST 13KR-6H-P KR Series Socket, 13 Position, 2.00mm IDC

MPN13KR-6H-P
Active

JST KR series, 13KR-6H-P, 13-position IDC socket, 2.00mm pitch, 1 row, tin-plated contacts, free-hanging, gray housing.

$0.6800Ref. price · indicative, final on quote
13KR-6H-P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

13KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions13

Product details

The JST 13KR-6H-P is a 13-circuit IDC socket from the KR series, terminated to discrete 26 AWG wire with an insulation displacement contact. Tin plating on the female socket contacts keeps cost down for applications where the mating cycle count stays low — think internal appliance wiring, control harnesses, or sensor connections that mate once during assembly and rarely see field service.

IDC Termination and Wire Prep

The cable termination is IDC — no stripping, no crimping. This makes the 13KR-6H-P a fast-loading option for harness builders who already run an IDC press or hand tool. The trade-off: IDC connections are permanent once seated, so field rework means cutting and re-terminating, not pulling a crimp terminal.

Frequently asked questions

Where can I buy JST 13KR-6H-P available via RFQ confirmation?

Stock and lead time are confirmed at quote — submit an RFQ for current availability.

What crimp housing and terminals mate with 13KR-6H-P?

The 13KR-6H-P is the socket (female) half of the KR series IDC system. It mates with the corresponding KR series pin header — the same 2.00 mm pitch, same 13-circuit count. No separate crimp terminal is used; the IDC contact is integral to the socket housing.
