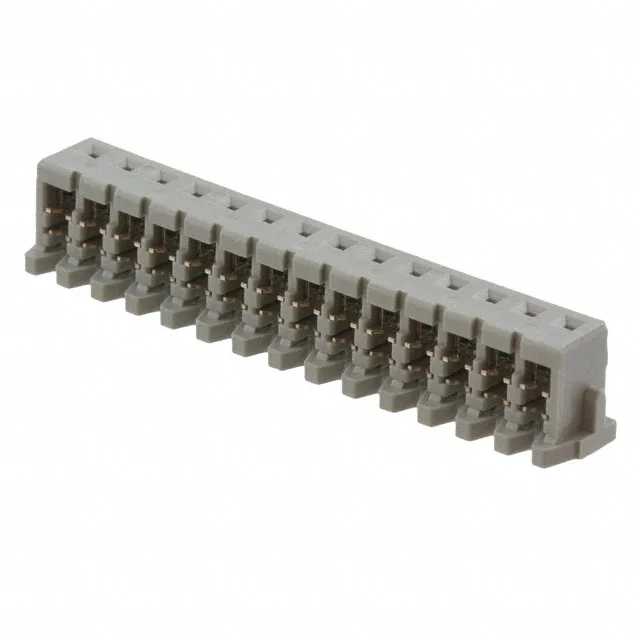

JST KR series, Socket, 14 positions, 1 row, 0.079" (2.00mm) pitch, IDC termination, Free Hanging, Tin contacts, Gray, Bulk.
| Parameter | Value |
|---|---|
| Series | KR |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Socket |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Gray |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 14 |
The JST 14KR-6H-P is a 14-circuit, single-row socket in the KR series, terminated via IDC for discrete 26 AWG wire.
This socket uses insulation-displacement termination, so no separate crimp terminal is needed — the 26 AWG wire is pressed into the slot during assembly. The free-hanging (in-line) mounting style lets it terminate a cable bundle directly, mating with a board-mounted KR-series header. Gray housing is standard for the series.
The 14KR-6H-P is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit a request for your target quantity.
The pitch is 0.079" (2.00 mm), which sets the PCB footprint spacing for the mating header.
It accepts 26 AWG discrete wire via IDC termination — no crimp terminal required.
