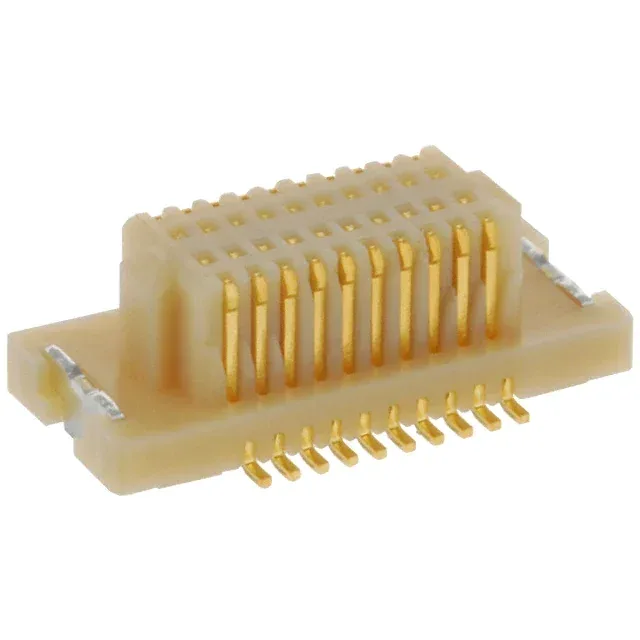

20R-JMDSS-G-1-TF — JST product photo
JST

JST 20R-JMDSS-G-1-TF JMD Series 20 Position 0.50mm Pitch

MPN20R-JMDSS-G-1-TF
Active

JST JMD series receptacle, center strip contacts, 20 positions, 2 rows, 0.020" (0.50mm) pitch, gold contact finish, surface mount, solder retention, 0.122" (3.10mm) height above board.

$1.4800Ref. price · indicative, final on quote
20R-JMDSS-G-1-TF datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20R-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.122\" (3.10mm)
Mated stacking heights4.5mm, 5mm, 6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions20

Product details

JST 20R-JMDSS-G-1-TF — 0.50mm Pitch Mezzanine Receptacle, 20 Circuits

Mated stacking heights of 4.5mm, 5mm, and 6mm are supported, giving three board-spacing options from one receptacle.

At 0.50mm pitch, the trace routing between pads is tight — you'll need at least a 0.10mm trace/space capability on the PCB to route a signal between every other pad. The 0.122" (3.10mm) height above board keeps the profile low enough for tight enclosures.

Mating Connector and Stack Height Options

This receptacle mates with the JMD series plug, specifically the 20P-JMDSS-G-1-TF, which has outer shroud contacts. The mated pair gives you three stacking height choices: 4.5mm, 5mm, or 6mm — the height is set by the plug variant, not the receptacle. The 20-position count matches the 20P-JMDSS-G-1-TF plug exactly; the 30-position sibling (30R-JMDSS-G-1-TF(S)(LF)(SN)) is a different BOM line.

Frequently asked questions

What is the mating connector for 20R-JMDSS-G-1-TF?

The mating connector is the JMD series plug 20P-JMDSS-G-1-TF, which has outer shroud contacts. The mated pair supports stacking heights of 4.5mm, 5mm, or 6mm depending on the plug variant.

Is 20R-JMDSS-G-1-TF RoHS compliant?

Yes, the 20R-JMDSS-G-1-TF is RoHS compliant per the JST listing.
