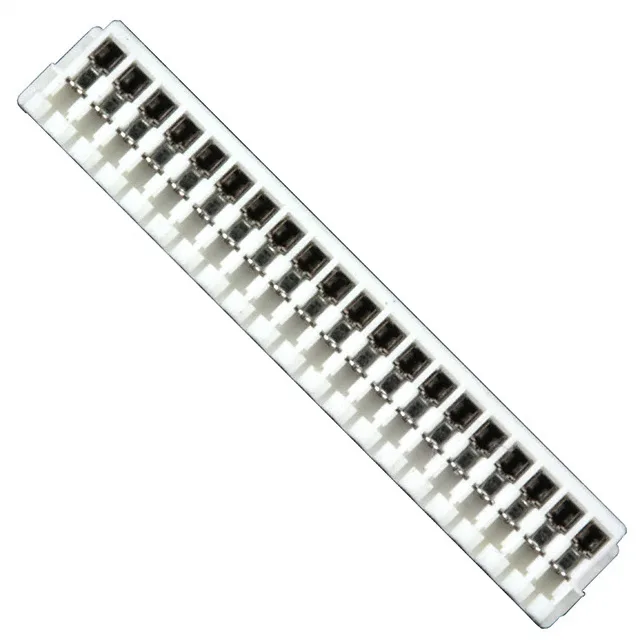

SUR Series IDC Receptacle, 20 Position, 0.80 mm Pitch
The 20SUR-32S is a 20-position, single-row IDC receptacle from the SUR series, terminated by insulation displacement to 32 AWG discrete wire. The 0.031" (0.80 mm) pitch matches standard 0.80 mm ribbon cable and pairs with a 2x10 pin header on the board side. The natural housing is closed-end — the cable stops at position 20 with no open back, which prevents the wire bundle from pushing through during assembly.
20 Positions at 0.80 mm Pitch — Footprint Fit
The 20-position count on a single row at 0.80 mm pitch gives a 15.2 mm body length (19 spaces × 0.80 mm). That footprint is fixed — the mating header must match both the pitch and the position count exactly. The closed-end feature means the cable inserts from one side only, so orientation matters when routing the harness into a tight enclosure.
32 AWG IDC — Fine-Wire Termination
This receptacle accepts only 32 AWG discrete wire via IDC termination.
Free-Hanging Mount — In-Line Harness Use
The free-hanging (in-line) mounting type means this receptacle is not board-mounted — it terminates the cable end and mates with a board-mounted pin header. The single-row, 20-position layout is common for ribbon cable assemblies running between boards in a chassis. The closed-end housing also serves as a strain relief point at the cable exit.
