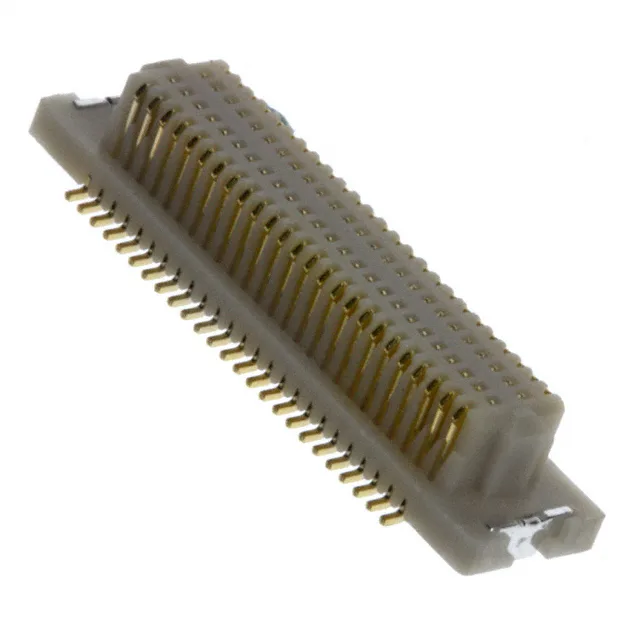

JST 50R-JMDSS-G-1-TF JMD Receptacle, 50 Pos, 0.50mm Pitch

MPN50R-JMDSS-G-1-TF
Active

JST JMD series receptacle, center strip contacts, 50 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold contact finish, solder retention feature, 0.122" (3.10mm) height above board.

$2.4900Ref. price · indicative, final on quote
50R-JMDSS-G-1-TF datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

50R-JMDSS-G-1-TF Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.122\" (3.10mm)
Mated stacking heights4.5mm, 5mm, 6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions50

Product details

Board-to-Board Stacking Receptacle for Tight Pitch Routing

The 0.020" (0.50mm) pitch packs 50 circuits into a dual-row footprint that keeps the PCB real estate under control — useful when routing dense digital or LVDS lines between stacked boards.

Stack Height Range and Board Layout Fit

This receptacle supports three mated stacking heights — 4.5mm, 5mm, and 6mm — depending on which mating header you pair it with. The 0.122" (3.10mm) height above board is the receptacle's own profile; the total stack comes from the header height. Surface-mount termination with the solder retention pads means no through-holes consume routing channels on inner layers.
