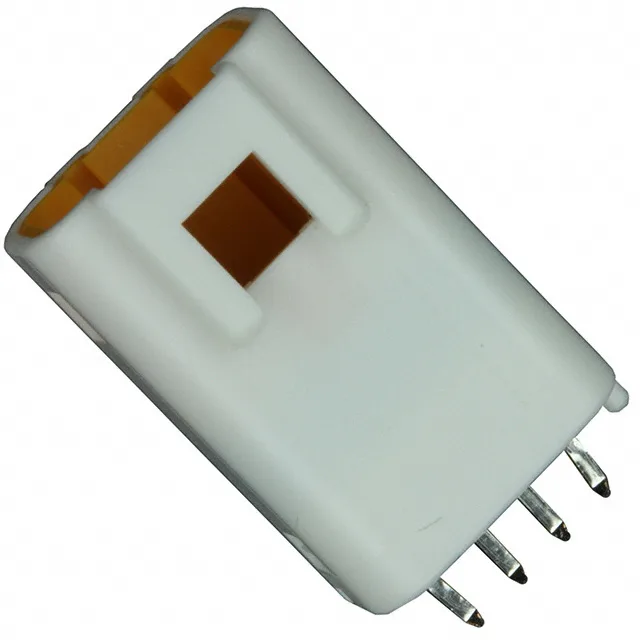

B04B-JWPF-EK-R — JST product photo
JST

JST B04B-JWPF-EK-R 4-Pin Header 2mm Pitch Active

MPNB04B-JWPF-EK-R
Active

JST Sales America Inc., JWPF series, Board to Cable/Wire Header, 4 positions, 2.00mm pitch, shrouded 4-wall, latch holder, tin-plated contacts, through-hole kinked pin solder, IP-rated dust tight and waterproof, 3 A, 100 V, UL94 V-0, active production.

$2.3300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B04B-JWPF-EK-R Technical Specifications
ParameterValue
SeriesJWPF
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating100V
Current rating3A
Ingress protectionDust Tight, Waterproof
Operating temperature-55°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.654\" (16.61mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Mated stacking heights21mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions4
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin

Product details

2.00 mm pitch, 4 positions, shrouded latch — what it is

The B04B-JWPF-EK-R: The through-hole termination uses kinked pins for solder retention, and the mating contact finish is tin — good for moderate cycle life in cost-sensitive builds.

IP-rated seal and latch holder for washdown environments

The header carries a dust-tight, waterproof ingress protection rating — unusual for a pin header — meaning the mated pair can handle occasional splashes or dust exposure.

The closest functional second-source is the B04B-JWPF-SK-R(LF)(SN) — same 4 positions, 2.00 mm pitch, same tin-plated contacts and IP rating. The only difference is the suffix; the EK-R variant uses a different latch or packaging detail. Both are active.
