6-Pin 2mm Header for Board-to-Cable Wiring

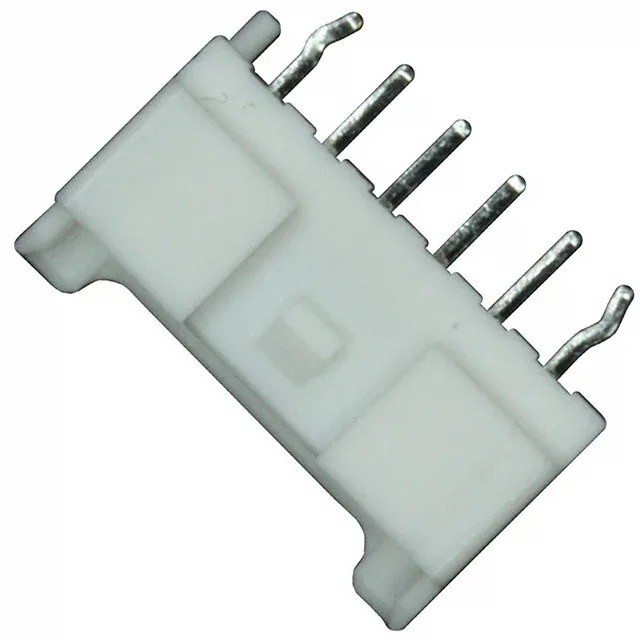

The B06B-PASK-1 is a 6-position, single-row header from JST's PA series, designed for board-to-cable/wire connections. It uses a 2.00mm pitch, which sets the PCB footprint and the mating half — the matching PA crimp receptacle. The header is shrouded on all four walls, protecting the male pins during handling and mating. Tin is a workable choice for moderate mating cycles — expect a few hundred mates before wear-through — and suits applications where the connector stays mated for long periods.
Locking Ramp and Stack Height Options
A locking ramp on the header engages with the mating receptacle's latch, providing positive retention in environments with vibration or cable tug. The header supports three mated stack heights — 9.9mm, 14.7mm, and 14.9mm — depending on the receptacle and wire orientation, giving flexibility in enclosure z-height budgeting. Insulation is glass-filled PBT rated UL94 V-0, meeting flame-retardant requirements for equipment inside an enclosure.
How It Compares to 5- and 8-Position Siblings
The B06B-PASK-1 shares the same 2.00mm pitch, tin plating, 3 A rating, and locking ramp with the 5-position B05B-PASK-1 and the 8-position B08B-PASK-1. All three use the same PA series crimp terminals and housings, so a harness built for one can be adapted by changing the receptacle position count.
