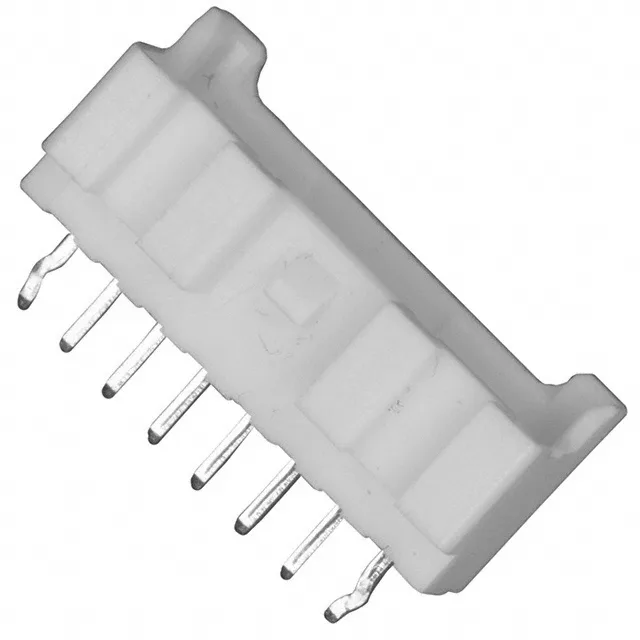

JST Sales America Inc. PA series, Board to Cable/Wire, Header, Male Pin, 8 Positions, 0.079" (2.00mm) Pitch, Through Hole, Shrouded - 4 Wall, Locking Ramp, Tin Contact Finish Mating and Post, 3A, 250V, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | PA |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 9.9mm, 14.7mm, 14.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.126\" (3.20mm) |
The header supports three mated stack heights — 9.9 mm, 14.7 mm, and 14.9 mm — depending on the mating receptacle used. This gives the board layout engineer room to adjust the z-height budget without changing the header footprint.
This header mates with JST PA series crimp-style receptacle housings. The locking ramp on the header engages with the corresponding latch on the receptacle for a secure connection.
The B08B-PASK is listed as RoHS non-compliant. Verify your application's regulatory requirements before ordering.
