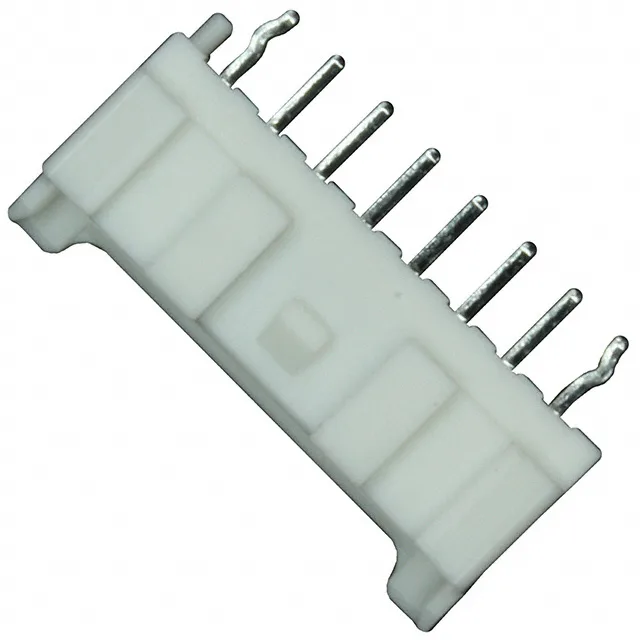

B08B-PASK-1 — JST product photo
JST

JST B08B-PASK-1 PA Series Header – 8 Pos 2mm Pitch

MPNB08B-PASK-1
Active

JST PA series, B08B-PASK-1, Board to Cable/Wire Header, 8 Positions, 0.079" (2.00mm) Pitch, Through Hole, Shrouded - 4 Wall, Locking Ramp, Tin Contacts, 3A, 250V, UL94 V-0

$0.5500Ref. price · indicative, final on quote
B08B-PASK-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B08B-PASK-1 Technical Specifications
ParameterValue
SeriesPA
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.303\" (7.70mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Mated stacking heights9.9mm, 14.7mm, 14.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions8
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.319\" (8.10mm)
Contact finish - matingTin
Contact length - mating0.126\" (3.20mm)

Product details

8-position shrouded header for PA-series wire-to-board

Rated 3 A per contact at 250 V, this header is suited for signal-level interconnects inside control cabinets, appliances, and automotive interior modules where the 2 mm pitch saves board space compared to 2.54 mm headers.

The 0.118" (3.00mm) post length fits standard 1.6 mm PCBs. Overall contact length is 0.319" (8.10mm), and the mated stacking heights of 9.9mm, 14.7mm, or 14.9mm depend on the receptacle housing chosen. The 4-wall shrouding and board guide protect the pins during mating and prevent misalignment.

Comparing to the 9-position sibling

The B09B-PASK-1 is the 9-position version of the same PA-series header, sharing the same 2 mm pitch, 3 A rating, locking ramp, and shrouding.

Frequently asked questions

Is B08B-PASK-1 RoHS compliant?

No, the B08B-PASK-1 is listed as RoHS non-compliant. If your application requires RoHS compliance, verify whether an exemption applies or look for an alternative RoHS-compliant PA-series header.

What is the mating connector for B08B-PASK-1?

This header mates with JST PA-series crimp receptacles (e.g., PA-series socket housings with crimp terminals). The locking ramp on the header engages with the receptacle latch for a secure connection.
