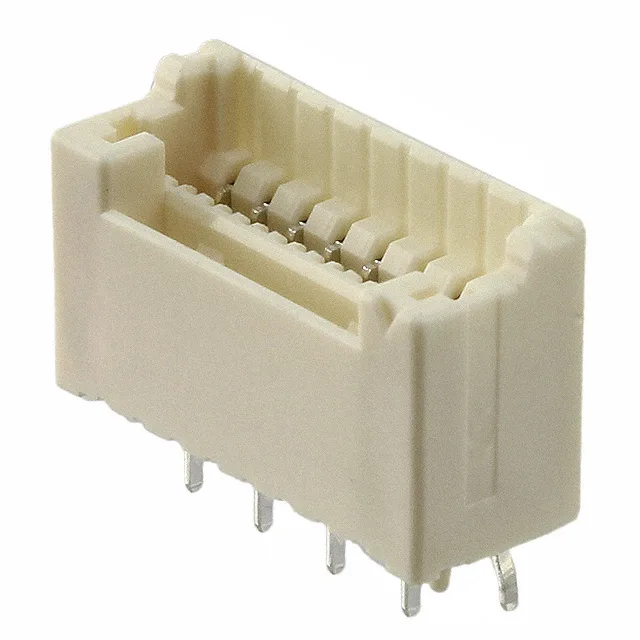

JST ZE series header, order code B08B-ZESK-1D, 8 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, through hole, kinked pin solder termination.
JST ZE series header, order code B08B-ZESK-1D, 8 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, through hole, kinked pin solder termination.
$0.2300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the B08B-ZESK-1D's connector style?
The B08B-ZESK-1D is a Board to Cable/Wire header.
