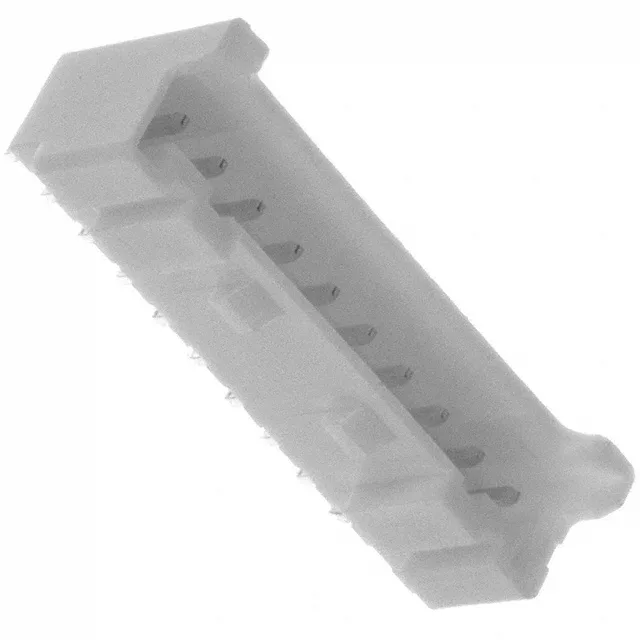

JST PA series, B10B-PASK-1, Board to Cable/Wire Header, Through Hole, 10 Positions, 2.00mm Pitch, Shrouded 4-Wall, Locking Ramp, 3A, 250V, Tin Contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | PA |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mated stacking heights | 9.9mm, 14.7mm, 14.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.126\" (3.20mm) |
The 2.00mm pitch and 10 positions loaded all define the PCB layout: a single row of 10 holes on 2.00mm centers. The kinked pin, solder termination provides mechanical retention during wave soldering.
The locking ramp engages with the matching PA-series receptacle housing to provide a positive latch, preventing accidental disconnection in applications subject to vibration or cable pull.
Yes, it has a locking ramp that provides a positive latch with the mating PA-series receptacle housing.
The mating pitch is 0.079 inches (2.00mm).
The B10B-PASK-1(LF)(SN) is a functionally identical variant with the same 10 positions, 2.00mm pitch, locking ramp, and PA-series compatibility. Confirm lead-free plating and RoHS compliance before substituting.
