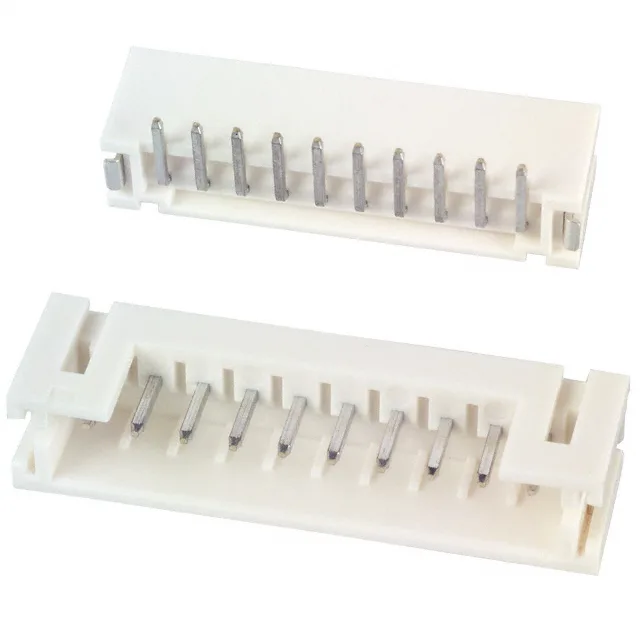

JST PH series header, order code B10B-PH-SM3-TB, 10 positions, single row, 2.00 mm pitch, 2 A, 100 V, shrouded - 4 wall, surface-mount, solder termination, tin-lead mating contact.
JST PH B10B-PH-SM3-TB Header, 10 Pos, 2.00mm, Obsolete
MPNB10B-PH-SM3-TB
Obsolete
JST PH series header, order code B10B-PH-SM3-TB, 10 positions, single row, 2.00 mm pitch, 2 A, 100 V, shrouded - 4 wall, surface-mount, solder termination, tin-lead mating contact.
$0.5400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PH |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.260\" (6.60mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 8.6mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.130\" (3.30mm) |
Product details
Frequently asked questions
What is the lead time for the B10B-PH-SM3-TB?
Lead time is quoted at RFQ. Availability is confirmed against surplus inventory — no stock-holding claim is made.
