JST Sales America Inc. PH series, B10B-PH-SM4-TB, Board to Cable/Wire Header, 10 positions, 1 row, 0.079" (2.00mm) pitch, Surface Mount, Tin contacts, Detent Lock, Natural, UL94 V-0
| Parameter | Value |
|---|---|
| Series | PH |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.260\" (6.60mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Mated stacking heights | 8.6mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.130\" (3.30mm) |

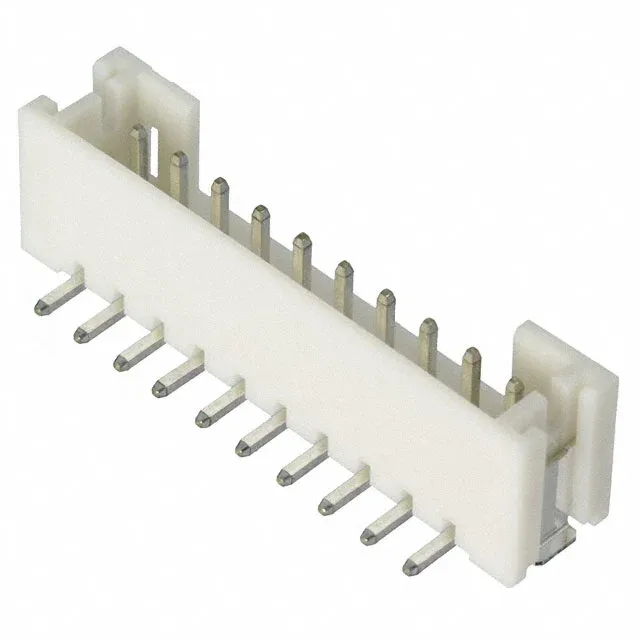

The B10B-PH-SM4-TB is a 10-position, single-row SMT header from JST's PH series, pitched at 2.00 mm.
Surface-mount termination with solder retention pads — the two extra hold-downs at each end anchor the header during reflow and resist peel forces from the mated cable. The contact mating length is 3.30 mm, which gives a solid wipe before the detent clicks in.
It mates with JST PH series crimp-style receptacles (e.g., PHR-xx housings with SPH-002T-P0.5S terminals). The detent lock on the header engages the latch on the receptacle housing.
No — the listed RoHS status is non-compliant. For a RoHS-compliant version, use B10B-PH-SM4-TBT(LF)(SN).
Yes — the header includes solder retention pads at both ends of the body, listed under Features as Solder Retention.
