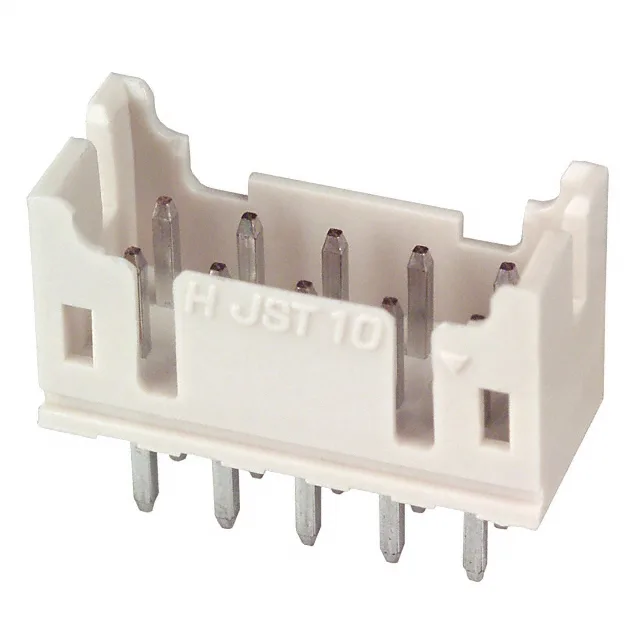

JST PHD series header, order code B10B-PHDSS, 10 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated male pins, through hole, solder termination, shrouded with detent lock.
| Parameter | Value |
|---|---|
| Series | PHD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.291\" (7.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
The 10-position B10B-PHDSS is one position count in the PHD series — the 2.00 mm pitch, dual-row layout, and detent-lock shrouding are shared across the family, so the selection decision is matching the circuit count to the application.
