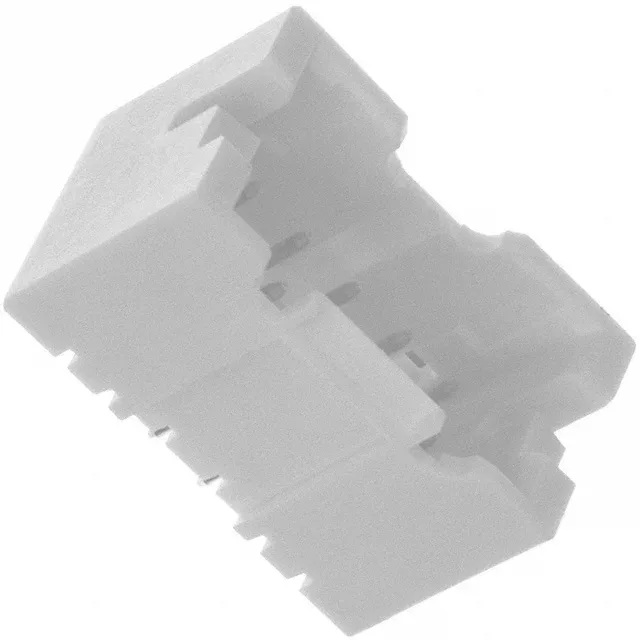

JST Sales America Inc. XAD series Board to Cable/Wire Header, 10 circuits, 2.50mm pitch, shrouded 4-wall, locking ramp, through-hole solder termination, tin-plated contacts, UL94 V-0 nylon housing, -25°C to 85°C operating range.
| Parameter | Value |
|---|---|
| Series | XAD |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.398\" (10.11mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 13.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 10 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The UL94 V-0 glass-filled nylon housing handles the flammability requirement inside an enclosure.
This is the primary retention mechanism — no secondary latch or screw lock.
It mates with the XAD series receptacle housing (e.g., XADP-10V) using the matching crimp terminals. The locking ramp on the header engages with the receptacle latch for vibration-resistant retention.
The B10B-XADSS-N(LF)(SN) is the direct functional equivalent — same 10 positions, 2.50mm pitch, locking ramp, 3 A/250 V rating, and UL94 V-0 housing, but with lead-free plating and RoHS compliance.
