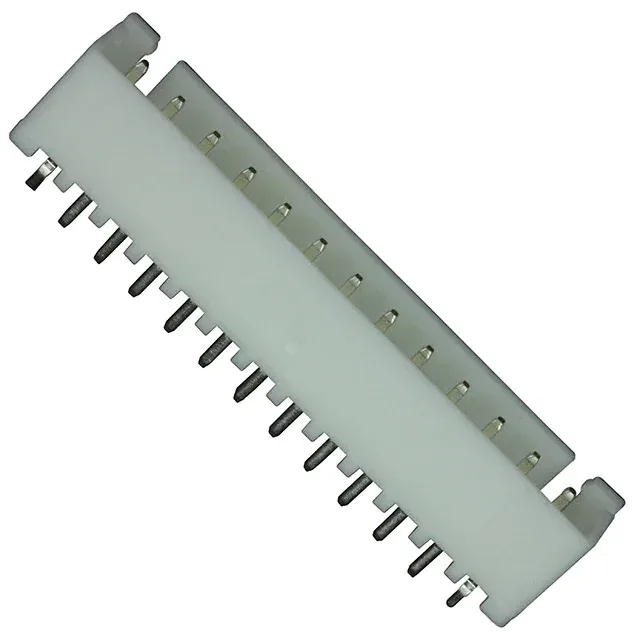

B13B-XH-A JST XH Series Header 13 Pos 2.5mm

MPN B13B-XH-A
Active

JST Sales America Inc., XH series, Board to Cable/Wire Header, 13 positions, 1 row, 0.098" (2.50mm) pitch, Through Hole, Solder termination, Shrouded - 4 Wall, Detent Lock, Tin contacts, 3A, 250V, UL94 V-0.

$0.5700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS non-compliant
IncotermsDAP / DDP Available
SeriesXH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

B13B-XH-A key specifications
ParameterValue
SeriesXH
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.276\" (7.00mm)
Insulation materialPolyamide (PA66), Nylon 6/6

All specifications

B13B-XH-A additional specifications
ParameterValue
Mated stacking heights9.8mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions13
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

13-position XH header with detent lock

Position count and pitch fit

With 13 positions loaded, this header is one position short of the 14-position B14B-XH-A sibling. The pitch remains the same 2.50mm across the XH series, so the board footprint scales linearly with position count.
