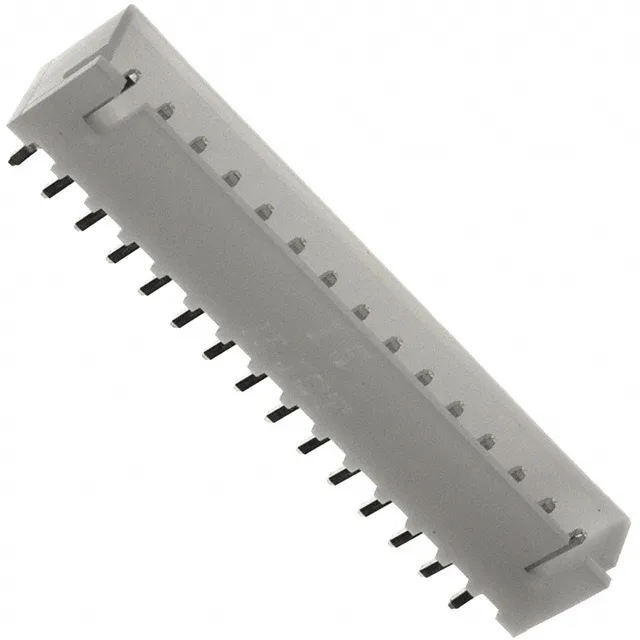

JST XH series, Board to Cable/Wire, Header, Male Pin, 15 Positions, 2.50mm Pitch, Through Hole, Shrouded - 4 Wall, Detent Lock, 3A, 250V, UL94 V-0, Natural
| Parameter | Value |
|---|---|
| Series | XH |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
Rated 3A per contact at 250V, with a UL94 V-0 nylon housing and tin-plated brass pins.
The 0.134" (3.40mm) solder post length provides a solid through-hole joint on standard 1.6mm PCBs.
The B15B-XH-A(LF)(SN) is functionally identical — same 15 positions, 2.50mm pitch, detent lock, and UL94 V-0 nylon housing. The difference is the (LF)(SN) suffix indicates lead-free and tin-plated contacts; the B15B-XH-A is RoHS non-compliant.
