JST Sales America Inc., PHD series, Board to Cable/Wire, Header, Male Pin, 16 circuits, 0.079" (2.00mm) pitch, Shrouded - 4 Wall, Detent Lock, Through Hole, Solder, 3A, 250V, Tin mating finish, UL94 V-0, Bulk.
| Parameter | Value |
|---|---|
| Series | PHD |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.291\" (7.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |

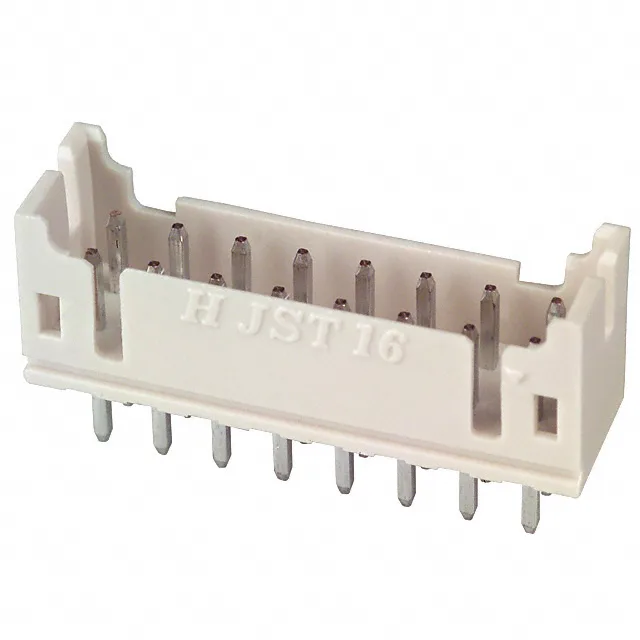

The B16B-PHDSS: This JST PHD series header carries 16 circuits on a 2.00mm pitch in a shrouded 4-wall housing with a detent lock — the shroud guides the mating receptacle and the lock holds it against vibration.
The B16B-PHDSS is a 16-position version of the same PHD series.
No — the JST listing marks B16B-PHDSS as RoHS non-compliant. If your BOM requires RoHS, look at the B14B-PHDSS(LF)(SN) or B12B-PHDSS(LF)(SN) which carry the (LF)(SN) suffix indicating lead-free and tin plating.
The B16B-PHDSS is a male pin header from the PHD series. It mates with a PHD-series female receptacle housing (e.g., PHR-16) using crimp terminals. The 2.00mm pitch and 2-row layout are consistent across the series.
