16-position dual-row header for wire-to-board

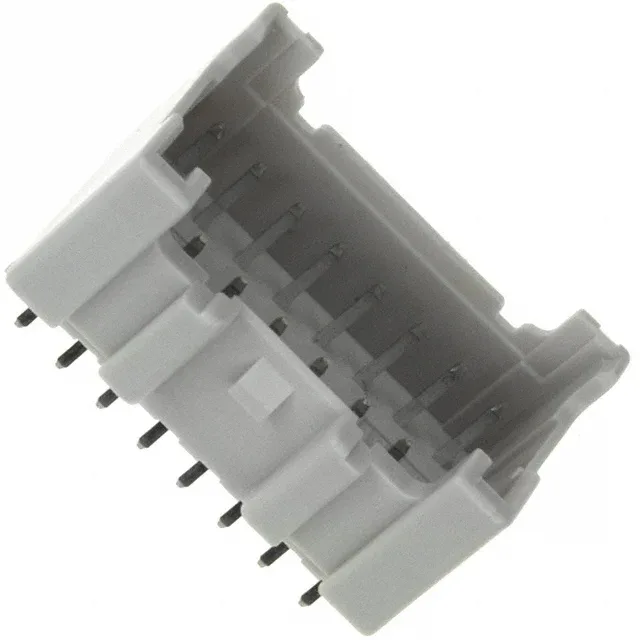

The B16B-PNDZS-1: This is a JST PND series header, 16 positions loaded in a dual-row arrangement on 2.00 mm pitch with 5.00 mm row spacing — the footprint matches a standard 2.00 mm wire-to-board receptacle from the same series. Rated 3 A per contact at 250 V, with a UL94 V-0 glass-filled nylon 6/6 housing that survives the reflow oven and the enclosure fire test.
RoHS non-compliant; confirm your assembly's exemption or substitution requirements before committing the line item.
The only difference is 18 positions vs 16 positions. If your BOM calls for 16 positions, the 18-position header will not fit the mating receptacle without leaving two positions unloaded — stick with the B16B-PNDZS-1 for a full-populated connection.
