JST Sales America Inc., PHD series, Board to Cable/Wire, Header, Male Pin, 18 Positions, 2.00 mm pitch, Through Hole, Solder, Shrouded - 4 Wall, Detent Lock, 3 A, 250 V, UL94 V-0, Bulk, RoHS non-compliant
| Parameter | Value |
|---|---|
| Series | PHD |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.291\" (7.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |

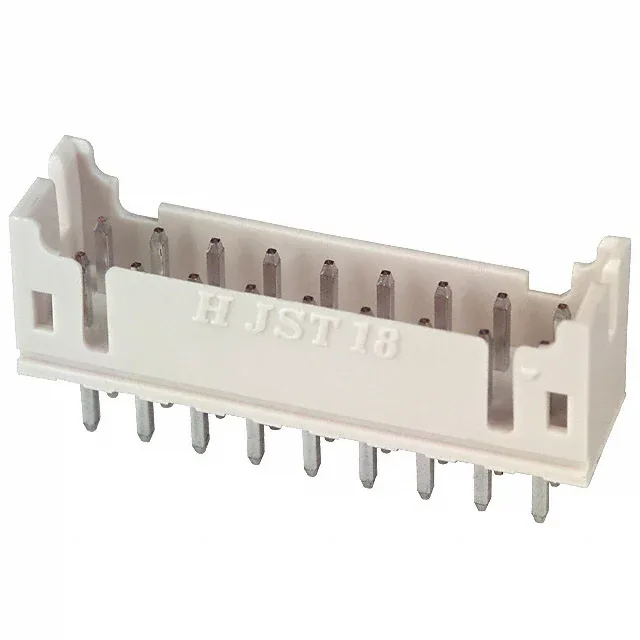

The B18B-PHDSS is a JST PHD series 18-position, 2.00 mm pitch shrouded header with a detent lock, designed for board-to-cable/wire applications.
This header mates with JST PHD series crimp receptacle housings. The detent lock engages with the housing's locking ramp.
No — the B18B-PHDSS is listed as RoHS non-compliant. If your project requires RoHS compliance, check for an exemption or consider the RoHS-compliant variant (e.g., B18B-PHDSS(LF)(SN) if available).
Yes — the fastening type is a detent lock. It provides a positive tactile click when mated with the PHD series receptacle housing, holding the pair together without screws or latches.
