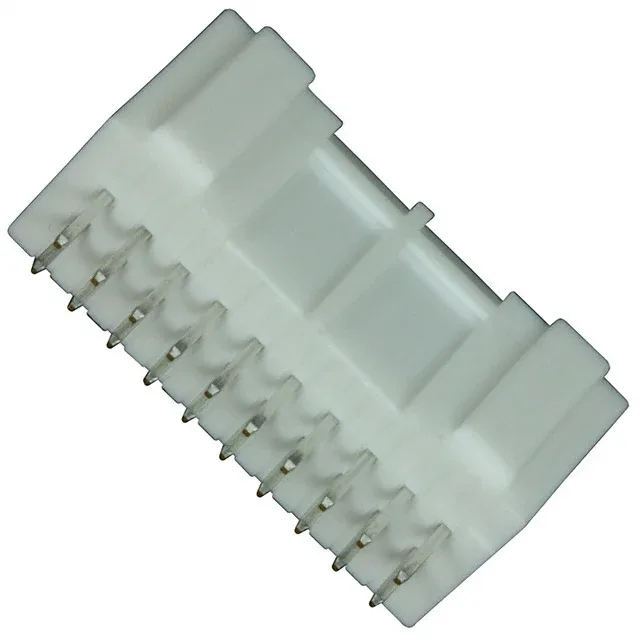

B20B-PADSS JST PAD Header 20 Pos 2mm TH Shrouded Locking

MPNB20B-PADSS
Active

JST Sales America Inc. PAD series Board to Cable/Wire header, B20B-PADSS, 20 positions, 2 rows, 2.00mm pitch, through-hole, shrouded - 4 wall, locking ramp, tin contacts, UL94 V-0, 3A, 250V.

$1.0300Ref. price · indicative, final on quote
B20B-PADSS datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B20B-PADSS Technical Specifications
ParameterValue
SeriesPAD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.402\" (10.20mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

20-position, 2.00mm pitch shrouded header for board-to-wire

The B20B-PADSS is a JST PAD series male pin header with 20 positions arranged in two rows at 0.079" (2.00mm) pitch, designed for board-to-cable/wire applications. The locking ramp fastening type secures the mating half against vibration — a practical feature for equipment that sees shock or movement in service.

Current, voltage, and temperature limits for the board layout

Housing material and flammability rating

Note that this part is RoHS non-compliant, which may affect use in regions with RoHS restrictions or require an exemption declaration.

How B20B-PADSS compares to the 22-position sibling

The closest peer in the same PAD series is the B22B-PADSS, which offers 22 positions instead of 20, with identical pitch (2.00mm), stack height (12.4mm), current rating (3 A), voltage (250 V), and locking ramp. If your BOM needs two more circuits, the B22B-PADSS is a drop-in alternative with the same footprint and mating interface — just two extra pins in the same row layout.

Frequently asked questions

What is the mating connector for B20B-PADSS?

This header mates with a JST PAD series crimp receptacle housing (e.g., PADP-20V-1-S) using the appropriate crimp terminals. The 2.00mm pitch and locking ramp are specific to the PAD series — confirm the mating half part number against your wire harness.

Are there alternatives to B20B-PADSS?

Within the same PAD series, the B22B-PADSS (22 positions) is a direct alternative if you need two more circuits. Both share the same pitch, stack height, current rating, and locking ramp.
