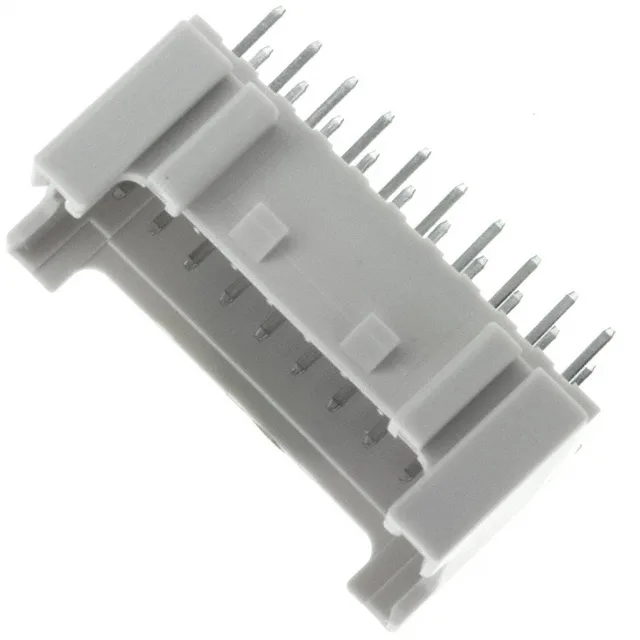

JST PND series, Board to Cable/Wire, Header, Male Pin, 20 circuits, 2.00 mm pitch, dual-row, through-hole, shrouded with locking ramp, tin-plated contacts, 3 A, 250 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | PND |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Ivory |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 12.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The B20B-PNDZS-1: This is a 20-position, dual-row, through-hole header on 2.00 mm pitch, with a row spacing of 5.00 mm.
Tin plating is suitable for moderate mating-cycle applications (typically under 50 cycles) and is cost-effective for harnesses that are mated once and left in service.
The B22B-PNDZS-1 is the same series with 22 positions instead of 20; all other specs (pitch, row spacing, locking ramp, current, voltage, stack height) are identical. For a direct position-count match, no second-source is listed — the B20B-PNDZS-1 is the only 20-position variant in the PND series.
The locking ramp on the header engages the latch on the receptacle for a vibration-resistant connection.
