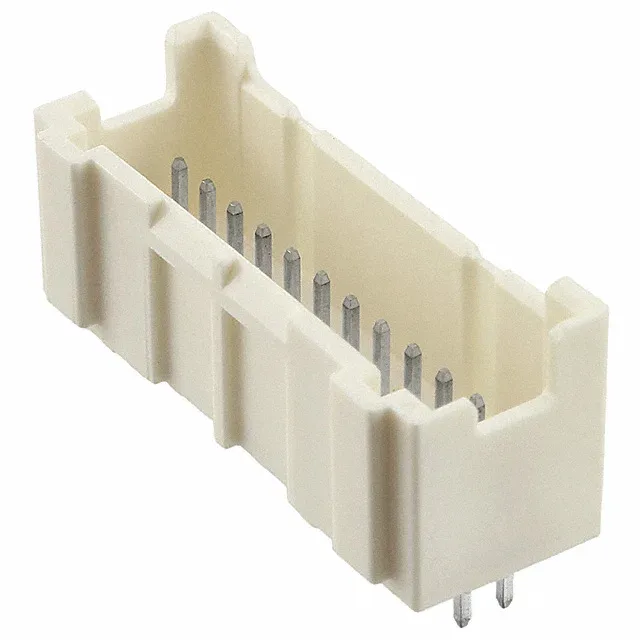

JST PAD series, Board to Cable/Wire, Header, Male Pin, 24 Positions, 2.00mm Pitch, Through Hole, Shrouded - 4 Wall, Locking Ramp, Tin Contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | PAD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.402\" (10.20mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated stacking heights | 12.4mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The B24B-PADSS-F is a 24-position, dual-row header from JST's PAD series, pitched at 2.00mm on both the row and column spacing.
The header terminates via through-hole solder tails, 0.134" (3.40mm) long, suitable for standard PCB thicknesses. The mated stack height is 12.4mm, consistent across the PAD series. Insulation is natural polyamide 6/6, glass-filled, rated UL94 V-0.
The B24B-PADSS-F mates with a JST PAD series crimp receptacle housing, such as the PADP-24V-1-S or similar 24-position female housing. The locking ramp on the header engages with the corresponding latch on the receptacle.
No, the B24B-PADSS-F is listed as RoHS non-compliant.
