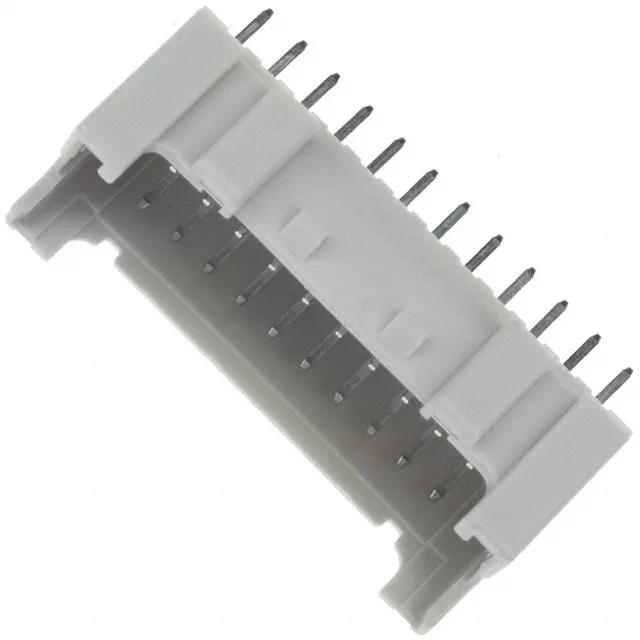

B24B-PNDZS-1 JST PND Header 24 Pos 2mm THT Locking Ramp

MPNB24B-PNDZS-1
Active

JST Sales America Inc. PND series, Board to Cable/Wire, Header, Male Pin, 24 Positions, 2.00mm Pitch, Dual Row, Through Hole, Shrouded - 4 Wall, Locking Ramp, 3A, 250V, -25°C to 85°C, Ivory, UL94 V-0, RoHS non-compliant

$0.9600Ref. price · indicative, final on quote
B24B-PNDZS-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B24B-PNDZS-1 Technical Specifications
ParameterValue
SeriesPND
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorIvory
Insulation height0.390\" (9.91mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions24
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

JST PND 24-Position Header – 2.00mm Pitch Wire-to-Board

The 2.00mm mating pitch and 5.00mm row spacing give a compact footprint for routing 24 circuits to a matching PND receptacle.

Mating pitch is 0.079" (2.00mm) with a row spacing of 0.197" (5.00mm). The mated stack height is 12.9mm, which sets the board-to-receptacle clearance in the assembly. The post length is 0.126" (3.20mm), typical for through-hole soldering to a standard PCB thickness.

Note that the B24B-PNDZS-1 is RoHS non-compliant. Verify your exemption or acceptance criteria before committing the line. The housing material is PA66 (Nylon 6/6) glass-filled, rated UL94 V-0 for flammability.

Frequently asked questions

Is B24B-PNDZS-1 RoHS compliant?

No, the B24B-PNDZS-1 is listed as RoHS non-compliant. Confirm your application's exemption status before ordering.

What is the mating receptacle for B24B-PNDZS-1?

This header mates with a JST PND series receptacle housing and crimp terminals. The 2.00mm pitch and 5.00mm row spacing are specific to the PND family — confirm the receptacle part number against your wire gauge and circuit count.
