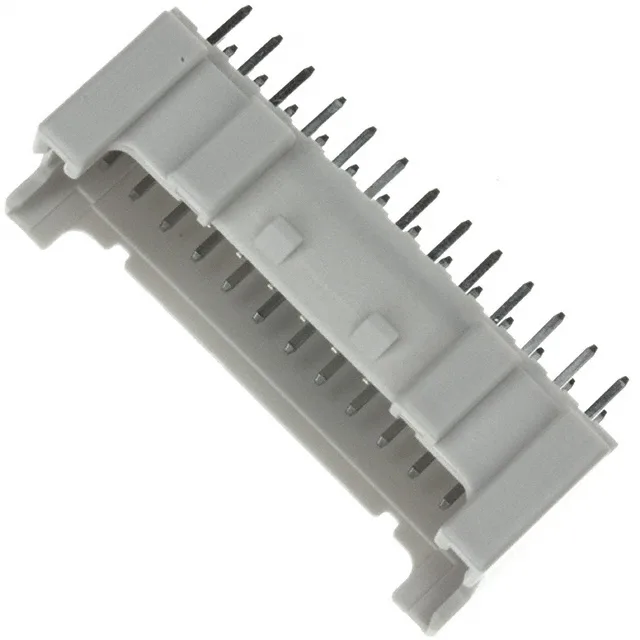

JST PND header, order code B26B-PNDZS-1, 26 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | PND |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Ivory |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 12.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
The B26B-PNDZS-1 is the 26-circuit member of JST's PND shrouded header line, designed for board-to-cable/wire applications. It carries tin-plated mating contacts rated 3 A at 250 V, with a locking ramp for vibration-resistant mating and a 4-wall shroud for mis-mate protection.
The header is shrouded with a 4-wall shroud and uses a locking ramp for secure mating. It is designed for board-to-cable/wire connections.
