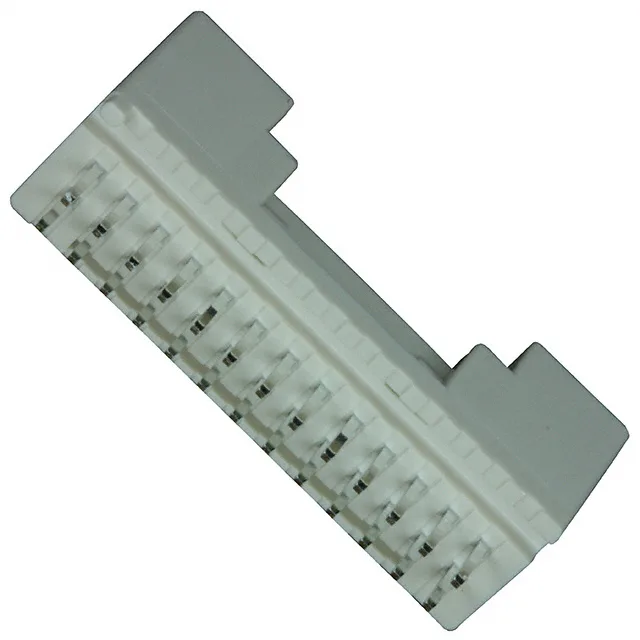

B26B-PUDSS-1 JST PUD Header 26 Pos 2mm TH Latch

MPNB26B-PUDSS-1
Active

JST PUD series, B26B-PUDSS-1, board-to-cable/wire header, 26 circuits, 2.00mm pitch, dual-row, through-hole, shrouded 4-wall, latch holder, tin-plated contacts, 3A, 250V, UL94 V-0.

$1.1500Ref. price · indicative, final on quote
B26B-PUDSS-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B26B-PUDSS-1 Technical Specifications
ParameterValue
SeriesPUD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Current rating3A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.378\" (9.60mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights11mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions26
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

The B26B-PUDSS-1: This is a 26-position, dual-row header on 0.079" (2.00mm) pitch — the same pitch as the mating receptacle, so the board footprint lines up pin-for-pin with the PUD crimp housing. All 26 positions are loaded, meaning no dummy pins to work around in the harness layout.

Latch holder keeps the mate secure

RoHS non-compliant per the listing — this is a hard gate for any build shipped into RoHS-regulated territories unless an exemption applies. Confirm your compliance path before committing the BOM line.

Frequently asked questions

Is B26B-PUDSS-1 RoHS compliant?

No — the listing shows RoHS non-compliant. If your build requires RoHS conformity, this part cannot be used without an exemption or a compliant alternative.

What is the pitch of B26B-PUDSS-1?

0.079" (2.00mm) on both the mating pitch and the row spacing.

What is the mating connector for B26B-PUDSS-1?

It mates with a JST PUD series receptacle housing that accepts crimp terminals — the same 2.00mm pitch, dual-row layout. The latch holder on the header engages the lock on the receptacle housing.
