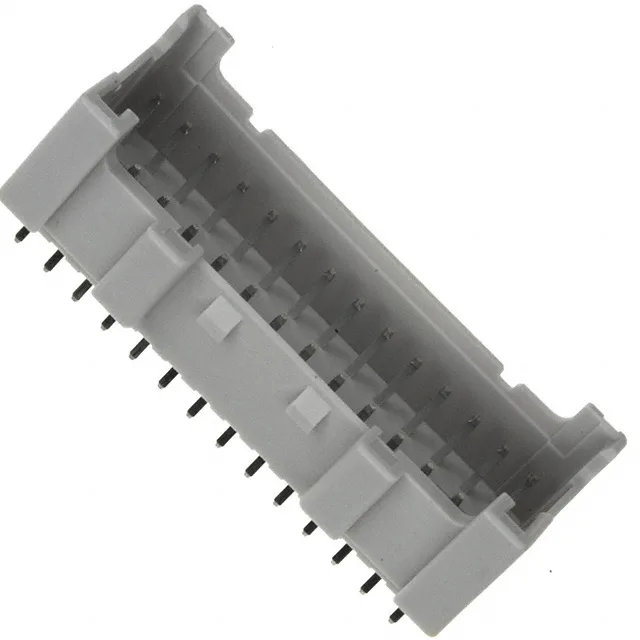

JST PND series, Board to Cable/Wire, Header, Male Pin, 28 Positions, 2.00mm Pitch, Through Hole, Shrouded - 4 Wall, Locking Ramp, Tin Contacts, UL94 V-0, -25°C ~ 85°C, 3A, 250V
| Parameter | Value |
|---|---|
| Series | PND |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Ivory |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Mated stacking heights | 12.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 28 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
Its 2.00mm pitch and 0.197" row spacing define the PCB footprint, and the shrouded 4-wall housing protects the male pins during handling and mating.
At 28 positions, this is the highest circuit count in the PND series — compare with the 24-position B24B-PNDZS-1 or the 22-position B22B-PNDZS-1. The extra four circuits save a second connector on a dense harness.
It mates with the JST PND series receptacle housing (sold separately). The locking ramp on the header engages the latch on the receptacle for vibration-resistant retention.
The closest functional equivalent is the B28B-PNDZS-1(T)(LF)(SN) — same 28 positions, 2.00mm pitch, and locking ramp, but with a different plating suffix. Confirm the BOM's plating requirement before substituting.
