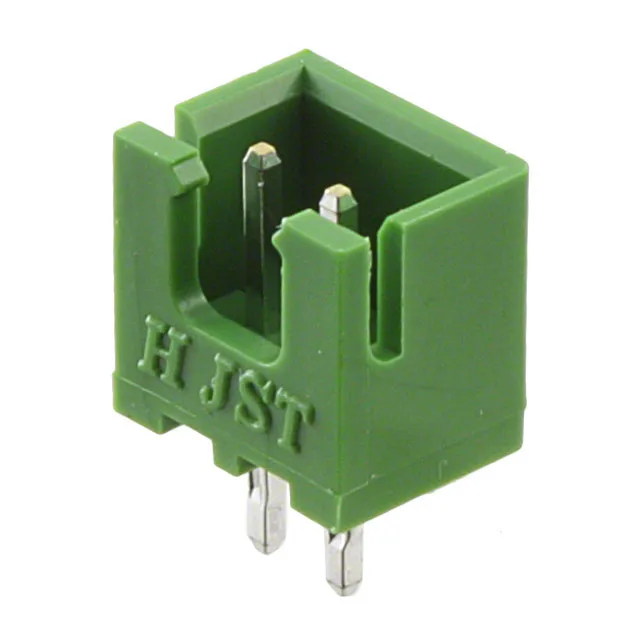

JST Sales America Inc. XH series, B2B-XH-A-M, Board to Cable/Wire header, 2 positions, 0.098" (2.50mm) pitch, through-hole, shrouded 4-wall, detent lock, 3 A, 250 V, -25°C ~ 85°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The B2B-XH-A-M: It mates with XH-series crimp receptacles for board-to-cable connections. The housing is green polyamide (PA66) rated UL94 V-0.
Termination is press-fit, solder — the square pins insert into plated through-holes. The contact length after the board is 0.134" (3.40mm).
This header mates with XH-series crimp receptacles (e.g., XHP-2) using the appropriate crimp terminals. The detent lock engages with the receptacle latch.
