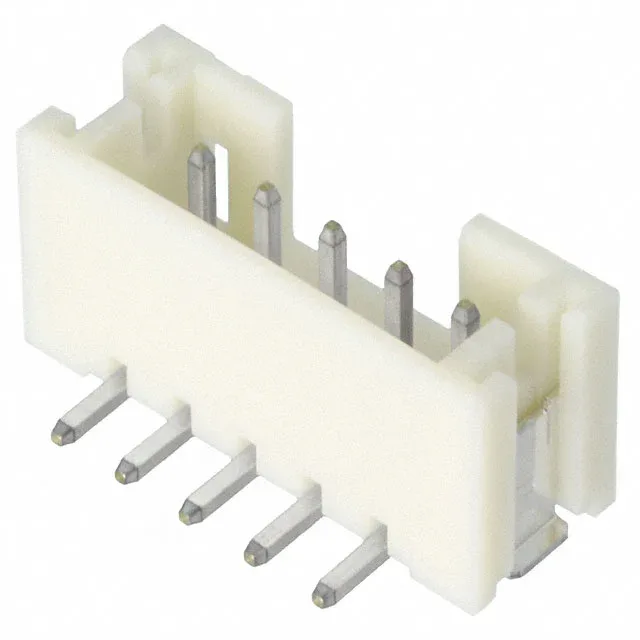

B5B-PH-SM4-TB — JST product photo
JST

B5B-PH-SM4-TB JST PH Series 5-Pin SMT Header, 2.00mm Pitch

MPNB5B-PH-SM4-TB
Active

JST Sales America Inc. PH series, Board to Cable/Wire, Header, 5 Positions, 0.079" (2.00mm) Pitch, Surface Mount, Shrouded - 4 Wall, Detent Lock, Tin Mating Finish, 2 A, 100 V, UL94 V-0

$0.7700Ref. price · indicative, final on quote
B5B-PH-SM4-TB datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B5B-PH-SM4-TB Technical Specifications
ParameterValue
SeriesPH
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.260\" (6.60mm)
Insulation materialPolyamide (PA6T), Nylon 6T
Mated stacking heights8.6mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions5
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.130\" (3.30mm)

Product details

5-Position SMT Header for Wire-to-Board

The housing material is polyamide (PA6T) rated UL94 V-0, giving it a recognized flame resistance for use inside equipment enclosures.

Mated Stack Height and PCB Fit

When mated with the corresponding PH-series receptacle, the stack height is 8.6 mm from board to board.

Position Count Comparison in PH Series

The B5B-PH-SM4-TB carries 5 positions. The sibling B6B-PH-SM4-TB offers 6 positions and the B7B-PH-SM4-TB offers 7 positions, all sharing the same 2.00mm pitch, 8.6mm stack height, and 2 A rating. The B5B-PH-SM4-TBT is the tape-and-reel variant with pick-and-place features for automated assembly.

Frequently asked questions

What is the mating connector for B5B-PH-SM4-TB?

It mates with JST PH-series crimp receptacles, such as the PHR-5 housing (5-position) loaded with SPH-002T-P0.5S contacts. The detent lock on the header engages the latch on the receptacle housing.

Is B5B-PH-SM4-TB RoHS compliant?

No, the listing shows RoHS non-compliant. Verify your assembly's regulatory requirements before ordering.
