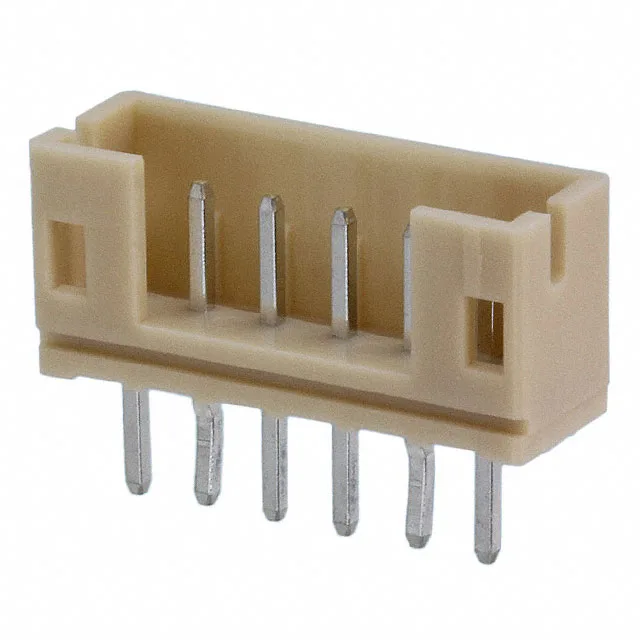

B6B-PH-K — JST product photo
JST

JST B6B-PH-K Header 6-Pin 2mm Pitch Active

MPNB6B-PH-K
Active

JST Sales America Inc., PH series, Board to Cable/Wire Header, 6 positions, 0.079" (2.00mm) pitch, Through Hole, Shrouded - 4 Wall, Detent Lock, 2A, 100V, Tin/Tin contacts, UL94 V-0, Active

$0.3600Ref. price · indicative, final on quote
B6B-PH-K datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B6B-PH-K Technical Specifications
ParameterValue
SeriesPH
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialBrass
Insulation colorIvory
Insulation height0.236\" (6.00mm)
Insulation materialPolyamide (PA66), Nylon 6/6
Mated stacking heights8mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions6
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.333\" (8.45mm)
Contact finish - matingTin
Contact length - mating0.130\" (3.30mm)

Product details

6-position 2.00mm pitch header with detent lock

The B6B-PH-K is a 6-position, single-row, shrouded header from JST's PH series, on 0.079" (2.00mm) pitch.

Mating half and board footprint

This header mates with JST PH series crimp receptacle housings (e.g., PHR-6) loaded with SPH-002T-P0.5S contacts. The 0.134" (3.40mm) post length suits standard 1.6mm PCBs; the mated stack height is 8mm. The 4-wall shroud protects the 0.130" (3.30mm) mating pins from bending during blind mating or harness assembly.

Frequently asked questions

What is the mating connector for B6B-PH-K?

It mates with JST PH series crimp receptacle housings, such as PHR-6, loaded with SPH-002T-P0.5S contacts.

What is the closest functional second-source for B6B-PH-K?

B6B-PH-K(LF)(SN) is the closest alternate — same 6 positions, 2.00mm pitch, shrouding, and detent lock. The (LF)(SN) suffix indicates lead-free and tin-plated tails; it is functionally interchangeable for most soldering processes.
