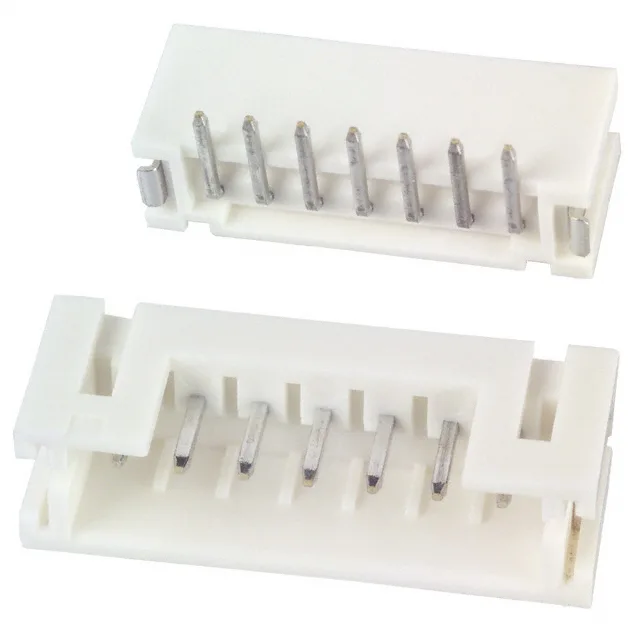

JST B7B-PH-SM3-TB PH Series Header, 7 Pos, 2.00mm Pitch, SMT

MPNB7B-PH-SM3-TB
Obsolete

JST PH series, Board to Cable/Wire, 7-position single-row shrouded header, 2.00mm pitch, Surface Mount, Tin-Lead contacts, 2A rated, 100V, detent lock, UL94 V-0, Tape & Reel.

$0.9300Ref. price · indicative, final on quote
B7B-PH-SM3-TB datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B7B-PH-SM3-TB Technical Specifications
ParameterValue
SeriesPH
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.260\" (6.60mm)
Insulation materialPolyamide (PA46), Nylon 4/6
Mated stacking heights8.6mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions7
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Contact length - mating0.130\" (3.30mm)

Product details

7-Pin SMT Header for Wire-to-Board — Obsolete but Sourced

The 0.130" (3.30mm) mating pin length engages fully with the receptacle contact.

This header mates with JST PH series crimp-style receptacle housings (e.g., PHR-7, or similar 7-position housing) using the appropriate crimp terminals (SPH-002T-P0.5S or equivalent).

JST lists this part as obsolete. No official successor part number is published. The housing material is UL94 V-0 rated polyamide (PA46), suitable for equipment requiring flame retardancy.

Frequently asked questions

How can I order JST B7B-PH-SM3-TB or check stock?

This part is obsolete but we can source it through independent supply channels. No stock-holding claim is made — each lot is sourced per request.

What is the replacement for JST B7B-PH-SM3-TB?

JST has not published a direct pin-compatible replacement for this obsolete part. A board redesign may be required to use an alternative header from the PH series or another series with the same 2.00mm pitch and 7 positions. Check the PH series active products for possible substitutes.

What is the mating connector for B7B-PH-SM3-TB?

It mates with JST PH series 7-position receptacle housings (e.g., PHR-7) using crimp terminals such as SPH-002T-P0.5S.
