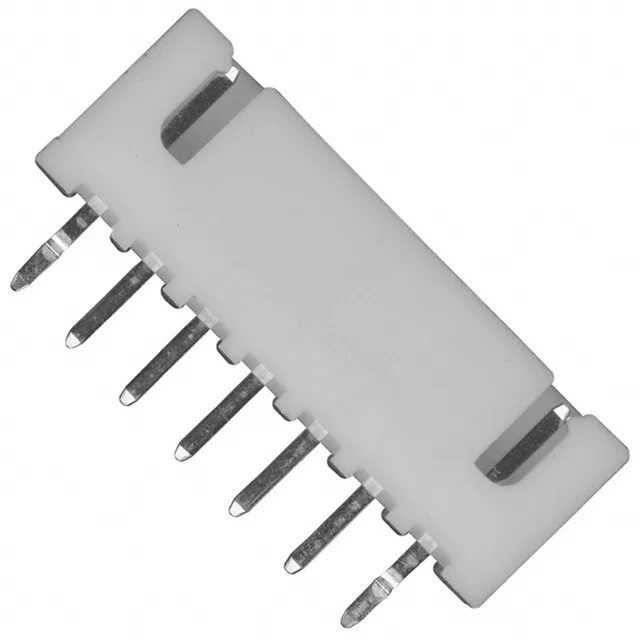

JST Sales America Inc. XH series, Board to Cable/Wire, 7 Positions, Header, Male Pin, Solder, Through Hole, 0.098" (2.50mm) Pitch, 3A, 250V, Detent Lock, Shrouded - 4 Wall
| Parameter | Value |
|---|---|
| Series | XH |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
Its 2.50mm pitch and 3A per-contact rating suit low-power signal and power distribution inside enclosures. Mated stack height is 9.8mm, which sets the z-axis clearance needed in the enclosure. The insulation is natural-colour PA66 (Nylon 6/6) rated UL94 V-0 for flame resistance.
The B7B-XH-A mates with JST XH series crimp-style receptacle housings (e.g., XHP series) using the appropriate crimp terminals. The 2.50mm pitch and detent lock are standard across the XH family.
No, the B7B-XH-A is listed as RoHS non-compliant. For RoHS compliance, order the B7B-XH-A(LF)(SN) variant, which is functionally identical with tin-plated contacts.
