$0.7400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ACH |
| Gender | Male Blade |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 50V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.055\" (1.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.047\" (1.20mm) |
| Positions | 3 |
| Contact finish - mating | Gold |
Sourcing this connector

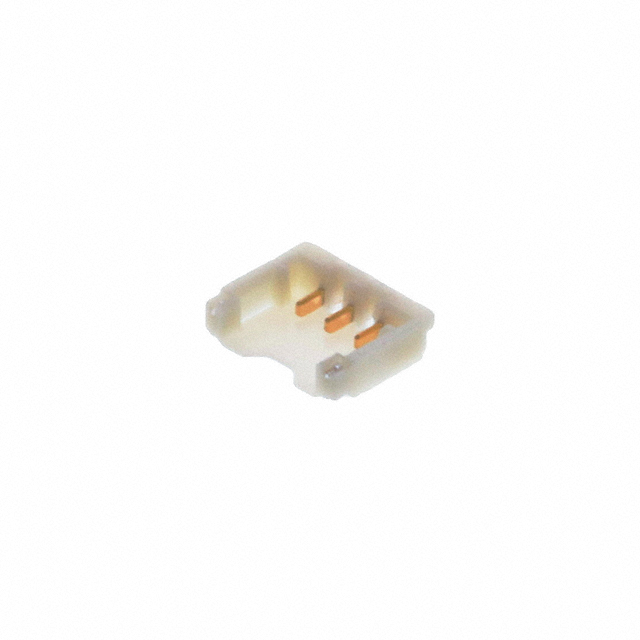

JST BM03B-ACHSS-GAN-ETF is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against JST and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
