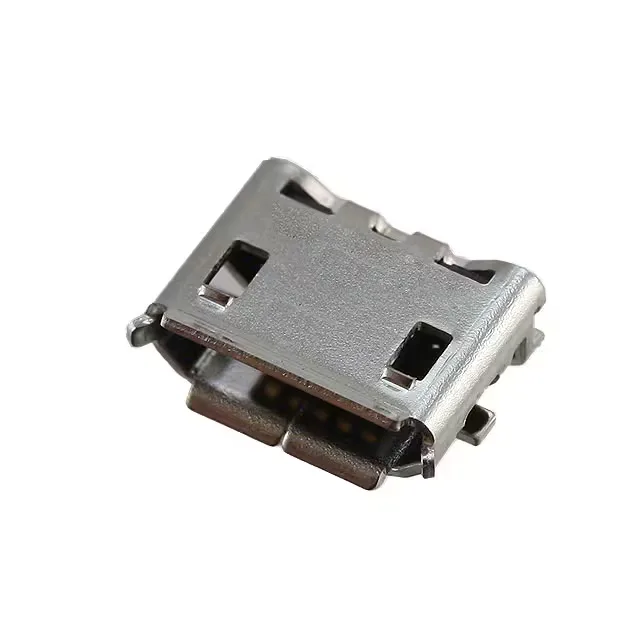

UB-MC5BR3-SD204-4S-TB NMP — JST product photo
JST

JST UB-MC5BR3-SD204-4S-TB NMP, USB micro-B Receptacle

MPNUB-MC5BR3-SD204-4S-TB NMP
Obsolete

JST UB series, USB - micro B receptacle, 5 contacts, SMT right-angle, gold contact finish, 30VAC/DC, 0.5A/1A/1.8A per contact, 10000 mating cycles, UL94 V-0.

$1.0000Ref. price · indicative, final on quote
UB-MC5BR3-SD204-4S-TB NMP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

UB-MC5BR3-SD204-4S-TB NMP Technical Specifications
ParameterValue
SeriesUB
Mounting typeSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated30VAC/DC
Current rating0.5A, 1A, 1.8A
Positions5
Mounting featureHorizontal
Operating temperature-30°C~85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShieldingUnshielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

The UB-MC5BR3-SD204-4S-TB NMP: This is a JST UB series USB micro-B receptacle, 5 contacts, designed for surface-mount right-angle attachment to a PCB. It is the device-side connector for USB 2.0 OTG or charging ports in compact electronics — tablets, handheld instruments, portable medical gear, or embedded modules. The current rating varies by contact: 0.5A, 1A, and 1.8A across the five positions. In practice, the VBUS pin carries the higher current for charging, while the data lines run at the lower rating.

The connector terminates via solder to the PCB — no crimp or press-fit option. The mounting feature is horizontal (right-angle), so the mating axis is parallel to the board surface. The insulation is black, and the shell material is steel, stainless — providing mechanical robustness without magnetic interference concerns.

The connector is unshielded, so it does not provide EMI containment at the port — plan for external board-level shielding if the design requires it.

Frequently asked questions

Where can I buy UB-MC5BR3-SD204-4S-TB NMP?

This part is obsolete and no longer stocked through standard distribution. We can source remaining inventory through independent supply channels — submit an RFQ and availability and pricing will be confirmed at quote time.

What is the pinout of UB-MC5BR3-SD204-4S-TB NMP?

This is a standard USB micro-B receptacle with 5 contacts. The pinout follows the USB 2.0 specification: pin 1 VBUS, pin 2 D-, pin 3 D+, pin 4 ID, pin 5 GND. The ID pin is used for OTG identification.
