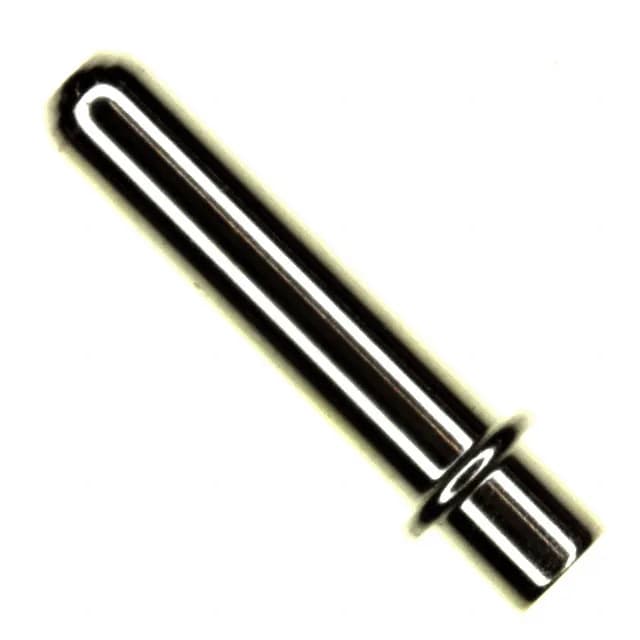

Keystone Electronics PC Pin, order code 1210, single end, 0.125" (3.18mm) diameter above and below flange, nickel finish, brass contact, non-insulated, through hole, staking flare termination, bulk package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Terminal style | Single End |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Nickel |
| Board thickness | 0.062\" (1.57mm) or 0.093\" (2.36mm) |
| Flange diameter | 0.175\" (4.44mm) |
| Length - overall | 0.691\" (17.55mm) |
| Length - above flange | 0.540\" (13.72mm) |
| Length - below flange | 0.125\" (3.18mm) |
| Pin size - above flange | 0.125\" (3.18mm) Dia |
| Pin size - below flange | 0.125\" (3.18mm) Dia |
The 1210 is a non-insulated single-end PC pin from Keystone Electronics, with a 0.125" (3.18mm) diameter above and below the flange, suited for through-hole mounting into boards of 0.062" (1.57mm) or 0.093" (2.36mm) thickness. The brass contact carries a nickel finish, and the pin terminates via staking flare — the flange diameter is 0.175" (4.44mm) and overall length is 0.691" (17.55mm).
