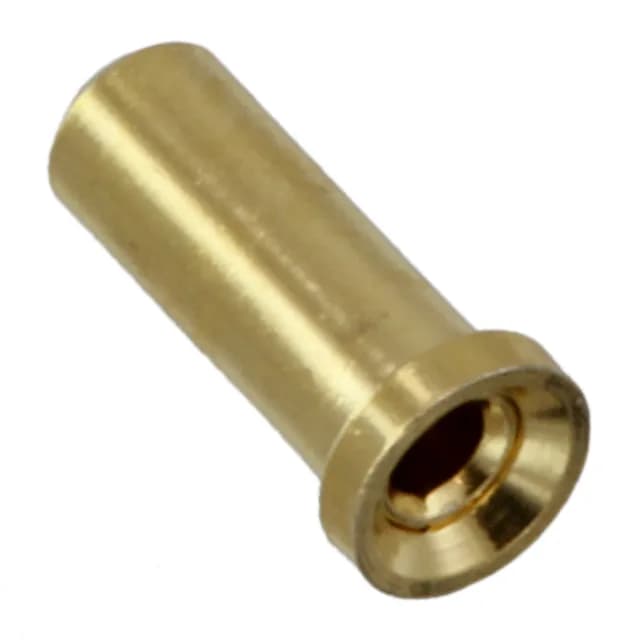

Keystone Electronics PCB pin socket, order code 1413, accepts 0.015" ~ 0.025" pin diameter, gold-plated beryllium copper contact, solder termination, 0.142" socket depth, 0.072" flange diameter, Bulk package.
| Parameter | Value |
|---|---|
| Tail type | No Tail |
| Mounting hole diameter | 0.057\" (1.45mm) |
| Socket depth | 0.142\" (3.61mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.072\" (1.83mm) |
| Length - overall | 0.161\" (4.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 10.0µin (0.25µm) |
The 1413 is a Keystone Electronics PCB pin socket that accepts pin diameters from 0.015" to 0.025" (0.38 mm to 0.64 mm) and terminates by soldering into a 0.057" mounting hole. The tail type is No Tail — the socket body itself is the solder joint. Contact is beryllium copper with 10.0 µin (0.25 µm) gold plating, rated for repeated insertions. Socket depth is 0.142" (3.61 mm); overall length is 0.161" (4.09 mm).
