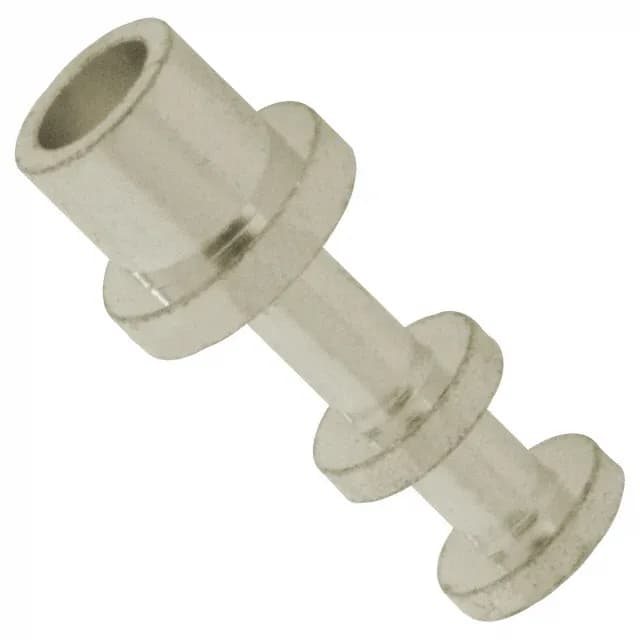

Keystone Electronics turret terminal, order code 1502-1, single end, non-insulated, double turret, tin contact finish, through hole, staking flare termination, 0.297" (7.54mm) overall length, Bulk package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.094\" (2.39mm) |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Tin |
| Board thickness | 0.032\" (0.81mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Staking side OD | 0.090\" (2.29mm) |
| Length - overall | 0.297\" (7.54mm) |
| Number of turrets | Double |
| Length - above board | 0.219\" (5.56mm) |
| Length - below flange | 0.078\" (1.98mm) |
| Diameter - turret head | 0.093\" (2.36mm) |
The 1502-1 is the single-end, double-turret member of Keystone Electronics' turret terminal line, terminated by staking flare into a 0.094" (2.39mm) mounting hole on boards up to 0.032" (0.81mm) thick. Brass construction with a tin finish; overall length is 0.297" (7.54mm), with 0.219" (5.56mm) above the board and a turret head diameter of 0.093" (2.36mm).
The 1502-1 is ROHS3 Compliant per Keystone Electronics.
The 1502-1 is a Non-Insulated turret terminal.
