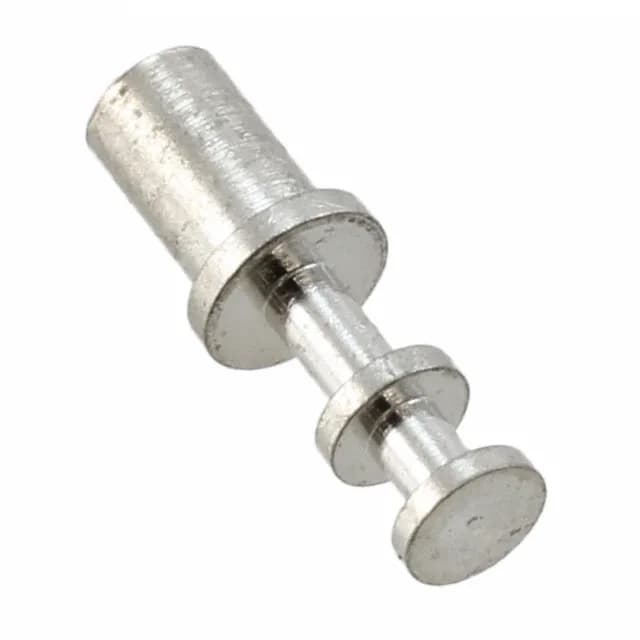

Keystone Electronics turret terminal, order code 1502-3, double turret, single end, tin-plated brass, through-hole staking flare termination, 0.360" (9.14 mm) overall length, 0.219" (5.56 mm) above board, bulk package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.094\" (2.39mm) |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Tin |
| Board thickness | 0.093\" (2.36mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Staking side OD | 0.090\" (2.29mm) |
| Length - overall | 0.360\" (9.14mm) |
| Number of turrets | Double |
| Length - above board | 0.219\" (5.56mm) |
| Length - below flange | 0.141\" (3.58mm) |
| Diameter - turret head | 0.093\" (2.36mm) |
The 1502-3 is a double-turret, single-end terminal from Keystone Electronics, intended for through-hole mounting with a staking flare termination. It is made of brass with a tin contact finish, measures 0.360" overall, and sits 0.219" above the board.
The 1502-3 is ROHS3 compliant.
