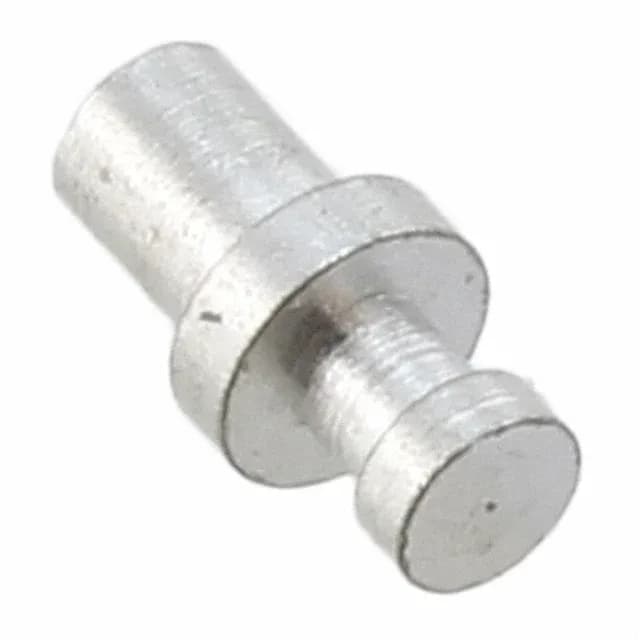

Keystone Electronics single turret terminal, order code 1508-2, non-insulated, tin-plated brass, single end, through-hole staking flare termination, bulk package, 0.177" (4.50mm) overall length.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.067\" (1.70mm) |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Tin |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.094\" (2.39mm) |
| Staking side OD | 0.062\" (1.57mm) |
| Length - overall | 0.177\" (4.50mm) |
| Number of turrets | Single |
| Length - above board | 0.093\" (2.36mm) |
| Length - below flange | 0.084\" (2.13mm) |
| Diameter - turret head | 0.063\" (1.60mm) |
The 1508-2 is a non-insulated single turret terminal from Keystone Electronics, intended for through-hole mounting with a staking flare termination. The brass body carries a tin finish; overall length is 0.177" (4.50mm) with 0.093" (2.36mm) above the board and a turret head diameter of 0.063" (1.60mm).
