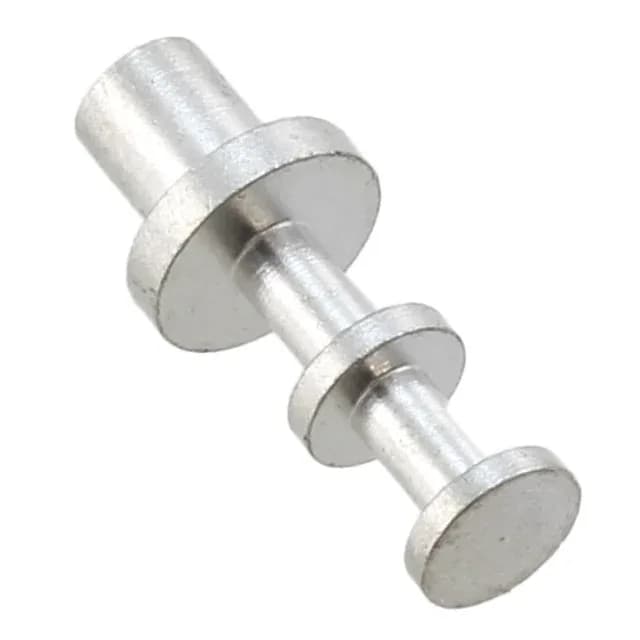

Keystone Electronics turret terminal, order code 1514-2, single end, double turret, tin-plated brass, through-hole mounting, staking flare termination, 0.062" (1.57mm) board thickness, 0.156" (3.96mm) flange diameter.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.094\" (2.39mm) |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Tin |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.156\" (3.96mm) |
| Staking side OD | 0.090\" (2.29mm) |
| Length - overall | 0.386\" (9.80mm) |
| Number of turrets | Double |
| Length - above board | 0.281\" (7.14mm) |
| Length - below flange | 0.105\" (2.67mm) |
| Diameter - turret head | 0.109\" (2.77mm) |
The 1514-2 is a single-end turret terminal from Keystone Electronics, double-turret design, tin-plated brass contact material. Mounts through hole with a staking flare termination; accepts board thickness 0.062" (1.57mm).
