Terminal type and board fit
The 1562-1 is a single end hollow turret terminal from Keystone Electronics, designed for through-hole mounting with a staking flare termination that secures it into the board hole.

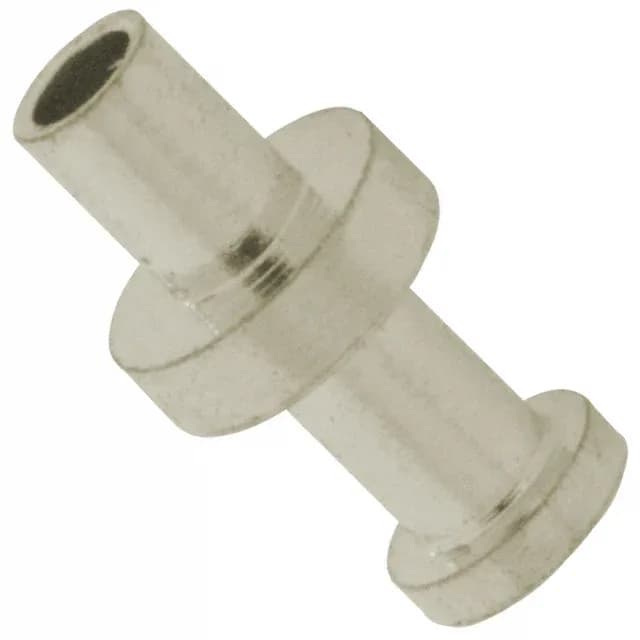

Keystone 1562-1 Turret Terminal, Tin, 0.210" Overall
MPN1562-1
Active
Keystone Electronics turret terminal, order code 1562-1, single end hollow, non-insulated, tin-plated brass, 0.210" (5.33 mm) overall length, through-hole staking flare termination, Bulk package.
$0.4300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Terminal type | Single End, Hollow |
| Mounting hole diameter | 0.067\" (1.70mm) |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Staking Flare |
| Contact finish | Tin |
| Board thickness | 0.032\" (0.81mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Staking side OD | 0.062\" (1.57mm) |
| Length - overall | 0.210\" (5.33mm) |
| Number of turrets | Single |
| Length - above board | 0.156\" (3.96mm) |
| Length - below flange | 0.054\" (1.37mm) |
| Diameter - turret head | 0.093\" (2.36mm) |
