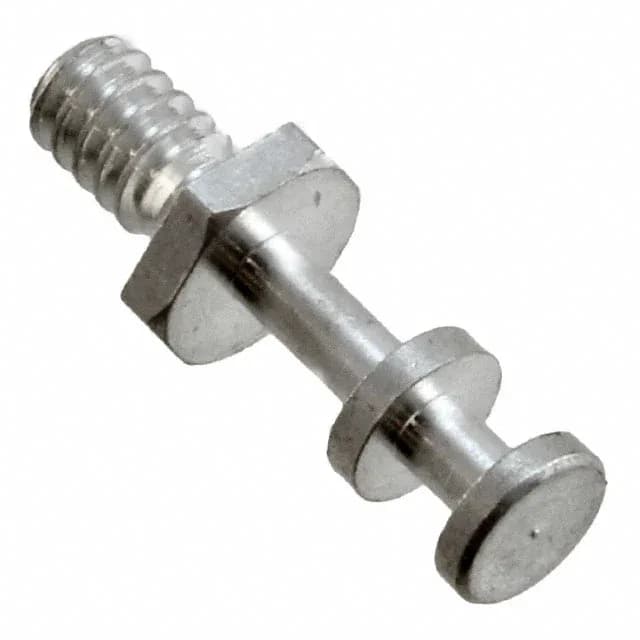

Keystone Electronics turret terminal, order code 1587-2, double turret, single end, tin-plated brass, panel mount, threaded termination, 0.062" (1.57mm) board thickness, 0.547" (13.89mm) overall length, Bulk.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Terminal type | Single End |
| Contact material | Brass |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Threaded |
| Contact finish | Tin |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.187\" (4.75mm) Hex |
| Length - overall | 0.547\" (13.89mm) |
| Number of turrets | Double |
| Length - above board | 0.360\" (9.14mm) |
| Length - below flange | 0.187\" (4.75mm) |
| Diameter - turret head | 0.145\" (3.68mm) |
The 1587-2 is a double-turret terminal from Keystone Electronics, threaded for panel mounting with a tin-plated brass body and non-insulated single-end construction. Overall length is 0.547" (13.89mm), with 0.360" (9.14mm) above the board and a 0.187" (4.75mm) hex flange diameter; the turret head diameter is 0.145" (3.68mm).
The 1587-2 is a Non-Insulated turret terminal.
