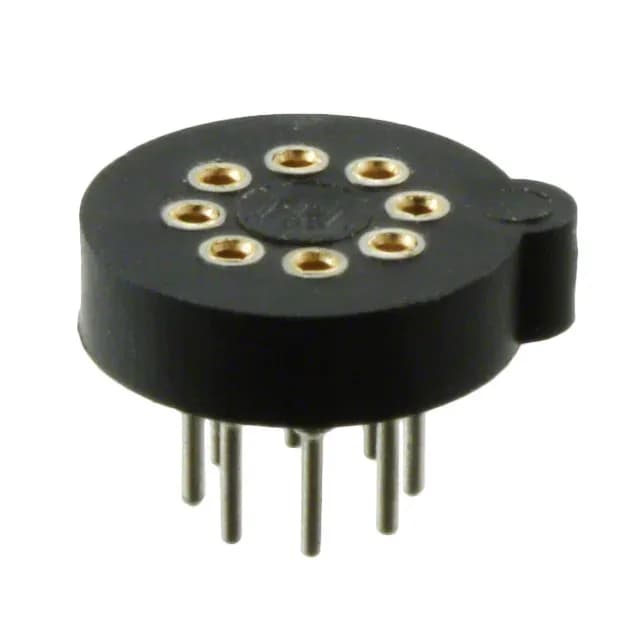

Keystone Electronics TO-5 transistor socket, order code 4592, 8 positions round grid, closed frame, tin-plated brass contacts, solder termination, chassis mount, polyester glass-filled housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Transistor, TO-5 |
| Mounting | Chassis Mount |
| Housing material | Polyester, Glass Filled |
| Contact material - post | Brass |
| Contact material - mating | Brass |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Closed Frame |
| Termination | Solder |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Number of positions or pins | 8 (Round) |
The 4592 is an 8-position TO-5 transistor socket from Keystone Electronics, designed for chassis-mount applications with a closed-frame polyester housing rated UL94 V-0. The socket ships in bulk packaging and is RoHS3 compliant.
The 8 contacts are arranged in a round grid matching the TO-5 lead pattern. Chassis mounting secures the socket for repeated transistor insertion and removal without board-level stress.
