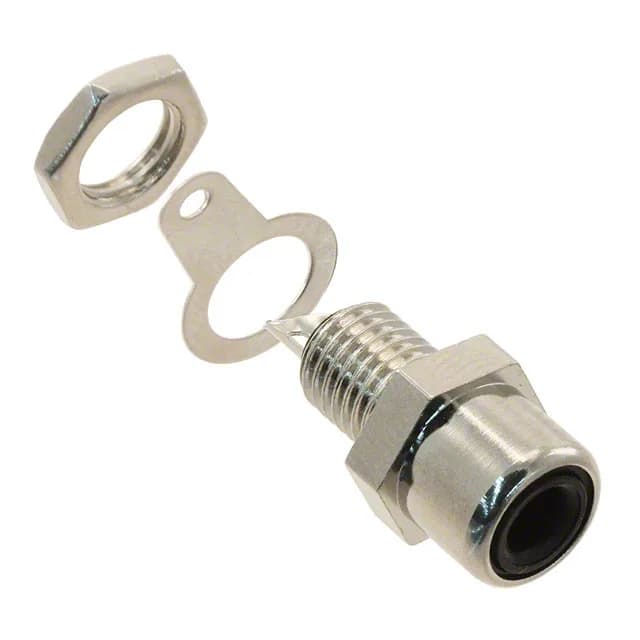

Keystone Electronics phono (RCA) jack, order code 576, female, mono, 2 conductors, 2 contacts, 3.20mm industry-recognized mating diameter, panel mount, solder eyelet termination, nickel-plated brass, unshielded, bulk.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Phono (RCA) Jack |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Insulation color | Black |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
| Features | Grounding Tab, Mounting Hardware |
| Includes | 2 pcs - 1 Connector, 1 Nut |
| Shielding | Unshielded |
| Parameter | Value |
|---|---|
| Termination | Solder Eyelet(s) |
| Connector size | 1/4\"-32 |
| Signal lines | Mono |
| Actual diameter | 0.134\" (3.40mm ID), 0.328\" (8.33mm OD) |
| Panel hole size | 0.375\" (9.52mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
The 576 is a female phono (RCA) jack from Keystone Electronics, configured for mono signal lines with 2 conductors and 2 contacts. It mounts through a 0.375" (9.52mm) panel hole and secures with a 1/4"-32 threaded nut; termination is via solder eyelets. The brass body and contacts are nickel-plated; the jack is unshielded and ships in bulk.
The 576 is ROHS3 compliant.
