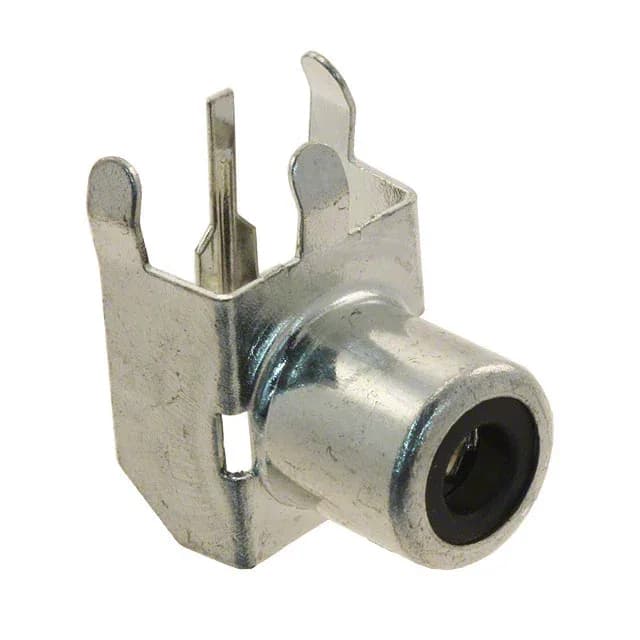

Keystone Electronics phono (RCA) jack, order code 901, female, 2 conductors/3 contacts, 3.20mm ID/9.00mm OD, tin-plated brass contacts, steel body, through-hole right-angle, kinked pin termination, bulk package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Body color | Silver |
| Body material | Steel |
| Contact material | Brass |
| Insulation color | Black |
| Contact material - plating | Tin |
| Gender | Female |
| Package | Bulk |
| Shielding | Unshielded |
| Termination | Kinked Pin |
| Signal lines | Mono |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
The 901 is a mono phono (RCA) jack from Keystone Electronics, female, with 2 conductors and 3 contacts, mating to the standard 3.20 mm ID/9.00 mm OD RCA plug. Termination is through-hole right-angle with a kinked pin for retention; the steel body is unshielded and the brass contacts receive a tin plating.
The 901 is a female jack with 2 conductors and 3 contacts.
