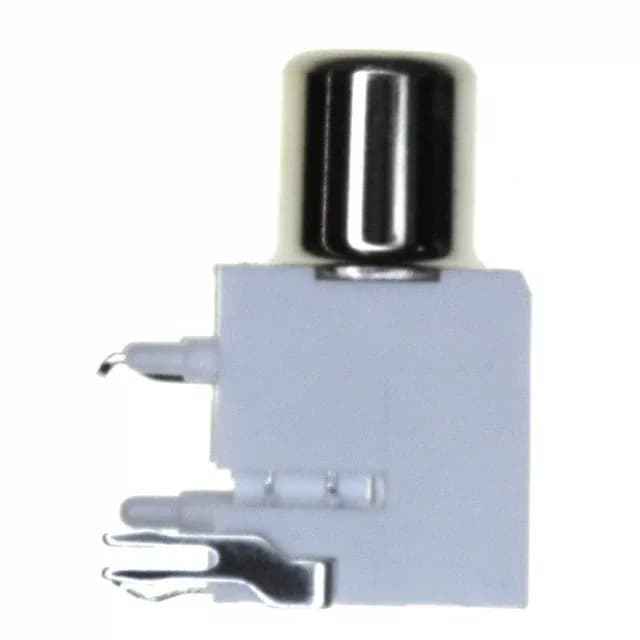

Keystone Electronics phono (RCA) jack, order code 970, female, mono, 2 conductors 3 contacts, 3.20mm ID 9.00mm OD, nickel-plated contacts, through hole right angle, solder termination, board lock, unshielded.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Body color | Silver, White |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | White |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.125\" (3.18mm ID), 0.327\" (8.31mm OD) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
The 970 is a mono phono (RCA) jack from Keystone Electronics, female, with 2 conductors and 3 contacts. It accepts the industry-recognized mating diameter of 3.20 mm ID and 9.00 mm OD (RCA). Mounts through hole, right angle, with solder termination. The nickel-plated contacts and board lock are standard. Unshielded, with a PBT housing.
