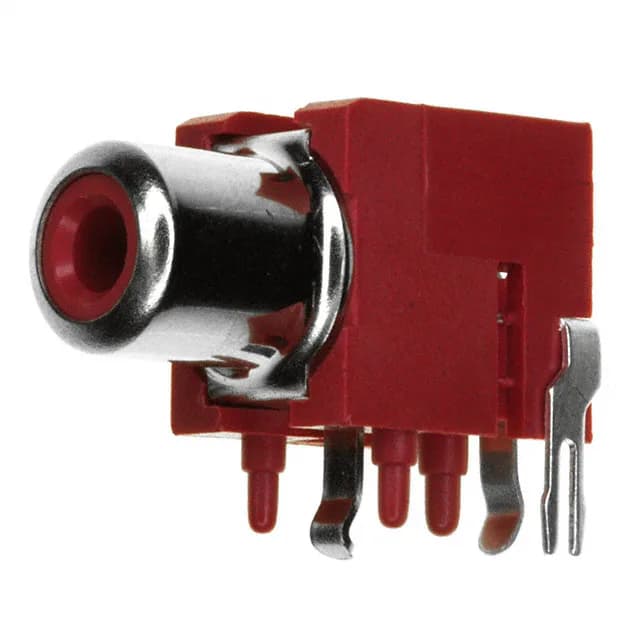

Keystone Electronics phono (RCA) jack, order code 971, female, mono, 2 conductors 3 contacts, 3.20mm ID / 9.00mm OD industry recognized mating diameter, nickel-plated contacts, through-hole right-angle, solder termination, bulk package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phono (RCA) Jack |
| Body color | Silver, Red |
| Body material | Brass |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | Red |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Mono |
| Actual diameter | 0.125\" (3.18mm ID), 0.327\" (8.31mm OD) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 3.20mm ID, 9.00mm OD (RCA) |
The 971 is a female mono RCA phono jack from Keystone Electronics, accepting the standard 3.20 mm ID / 9.00 mm OD RCA plug. It carries nickel-plated brass and phosphor bronze contacts, a single internal switch, and a board lock for through-hole right-angle solder termination.
The 971 is a female RCA phono jack, accepting a male RCA plug with 3.20 mm inner diameter and 9.00 mm outer diameter.
