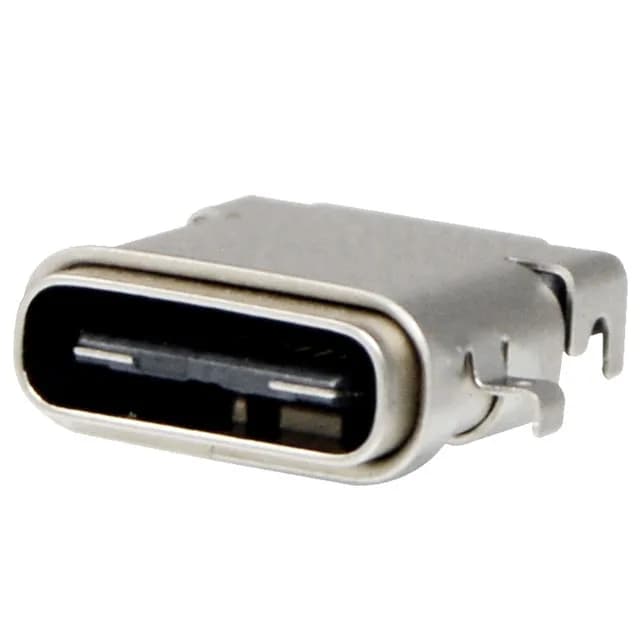

Kycon, Inc. KUSB67X-MM-CS1-B15TR
MPNKUSB67X-MM-CS1-B15TR
Active
$6.1000Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KUSB67X |
| Mounting | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 30V |
| Current rating | 0.25A, 1.25A, 5A, 6.25A |
| Positions | 24 |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Horizontal, Mid Mount |
| Operating temperature | -40°C ~ 80°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Kycon, Inc. |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
