KYOCERA AVX MOBO® 9155 battery contact, order code 009155003002016, 3 contacts, single row, 0.098" (2.50mm) pitch, gold finish 15.0µin, surface mount, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | MOBO® 9155 |
| Mounting | Surface Mount |
| Connector type | Battery Contact |
| Positions | 3 |
| Pitch | 0.098\" (2.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 15.0µin (0.38µm) |

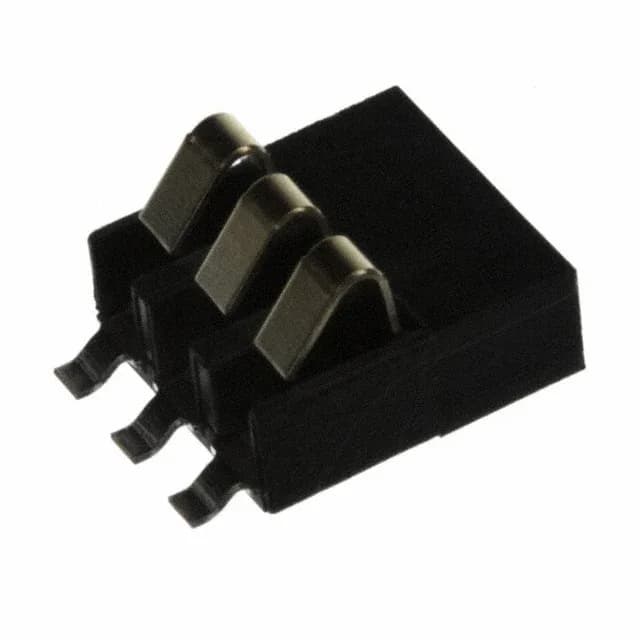

The 009155003002016 is the 3-contact member of the KYOCERA AVX MOBO® 9155 spring-loaded battery contact line. Contacts are gold-plated with 15.0µin thickness on a 0.098" pitch, surface-mounted for direct board attachment.
The 009155003002016 is ROHS3 compliant.
