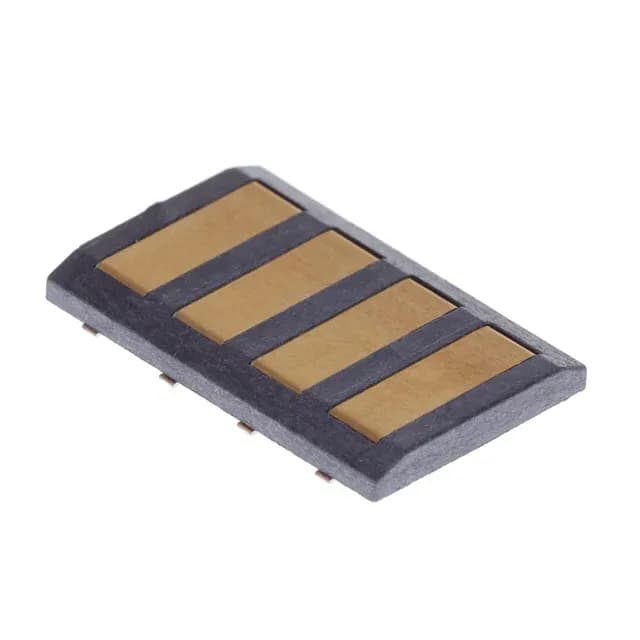

KYOCERA AVX 9155-400 spring-loaded battery contact, order code 009155004402006, 4 positions, single row, 0.157" (4.00mm) pitch, gold finish 16.0µin (0.41µm), surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | 9155-400 |
| Mounting | Surface Mount |
| Connector type | Battery Contact |
| Positions | 4 |
| Material | Phosphor Bronze |
| Pitch | 0.157\" (4.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 16.0µin (0.41µm) |
The 009155004402006 is the 4-contact member of KYOCERA AVX's 9155-400 spring-loaded battery contact line. It carries gold-plated phosphor bronze contacts with 16.0µin (0.41µm) finish and mounts surface-mount on a 0.157" (4.00mm) pitch.
The 009155004402006 is rated ROHS3 compliant.
The pitch is 0.157" (4.00mm).
